DT SWISS ARC 1400 DICUT Disc Brake Carbon Clincher 50mm Rear Wheel

Reborn Faster: This is the slogan under which DT-Swiss is launching the second generation of its ARC Aero wheel series. With the new dominance of disc brakes in the market and the trend towards wider tubeless tyres, the starting point for road bike wheel development has changed significantly. When developing the wheels, DT-Swiss stuck to its AERO+ concept, which aims to balance sometimes conflicting requirements such as top speed and the best possible handling. Close cooperation with the aerodynamics experts from Swiss Side has also been maintained, who, in addition to 20 years of experience in Formula 1, have also been able to convince with first-class cycling innovations in the recent past.

new rim shape
With the increased freedom provided by the disc brake system, the rim shape of the ARC wheels could be made wider. While the previous profile resembled the generalized U-shape, the new profile is a combination of the classic V and U shapes. At 20 millimeters, the inner width has been increased significantly to accommodate 25 and 28-millimeter tires. aerodynamic shape and be able to take advantage of the rolling resistance and comfort advantages of wider tires. In a direct comparison in the wind tunnel, the impellers were able to achieve maximum values at all relevant entry angles. However, thanks to the AERO+ concept, the new tires are not only fast, but their susceptibility to crosswinds has also been improved. This allows the rider to stay in an aerodynamic seating position for longer and make fewer direction corrections in high winds.

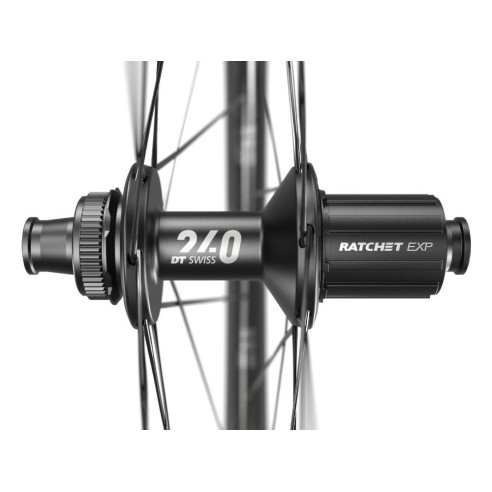

DICUT 240 hubs
The latest generation of 240 DICUT hubs with DT Swiss EXP technology spins in the center of the wheels. In addition to a reduction in weight compared to the previous version, the hubs have also become stiffer and feature aerodynamically optimized straight hub bodies and flanges. By using complex seals and load-matched bearing sizes, hubs do not need to adjust bearing play. The Ratchet-EXP ratchet freewheel system, with its large contact area and 36 locking points, guarantees extremely direct and reliable power transmission.


Technical specifications:

Area of Intended Use: Road Bike, Time Trial Bike, Triathlon
Wheel Size: 28" (ETRTO: 20-622)
Rim Type: Clincher (clincher and folding)
Brake type: for disc brake only
Brake Disc Mount: Center Lock
Rim material: carbon
Inner width: 20mm
Outer Width: 26.5mm
Rim height: 50mm
Number of holes: 24 holes
Tubeless ready: yes Standard axle: for bearings
12x142mm thru-axle
: 4 stainless steel bearings
Spokes: DT Swiss Aero Competition Straightpull (T-head)
Freehub Compatibility: Shimano Road 11-speed (Freehub body for SRAM XDR 12-speed included)
Freehub Type: Ratchet EXP, 2 ratchet, 36 detents
no camera: yes
Recommended rim width: 25mm (optimal aerodynamic efficiency) and 28mm
Maximum rider weight: 110 kg
Finish: Matte UD Carbon
Colour: white logo

WHEEL
700
CYCLING STYLE
ROAD
BRAKE TYPE
DISC
POSITION
REAR
MATERIAL
CARBON
WHEELS HEIGHT
41 a 52mm
WHEEL PARTS
WHEELS
NUMBER OF SPOKES
24
FIT SYSTEM DISC
CENTER LOCK
CATEGORY
WHEELS
Season
2025
