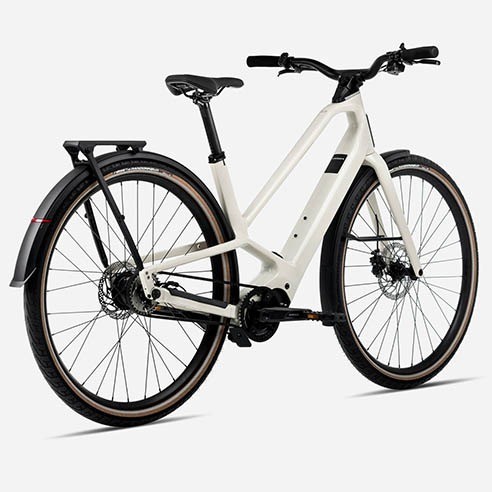

Orbea Diem 20 Bike

Orbea Diem 20 urban electric bike for the 2024 season in white. Orbea reference: S37703WM

Getting from A to B should be a pleasure, not a hassle. Diem is an urban electric bike that you can trust and that adds a touch of class to your daily life.

Diem 20, the powerful urban electric bicycle, blends into your daily activity and turns every trip into fun with its 5 internal gears and belt transmission.

SPECIFICATIONS

TABLE SET

• FRAME: Orbea Diem Hydro High Polished 2024, Flex Tech, 135x9 / 142x12, Headset Routing, Custom Kickstand, Orbea Urban Cockpit and compatible equipment
• FORK: Orbea Diem carbon fork, full carbon, 1" 1/8 - 1" 1/5, thru axle 12x1, post mount disc mount, Thrue Axle12x100mm, Long mudguards compatible.
• HEADSET: FSA 1-1/2" Integrated Aluminum Cup

EBIKE

• BATTERY: Orbea Internal 630Wh (Optional 250 Wh Range Extender)
• ENGINE: Shimano EP600
• REMOTE: EN600-L

TRANSMISSION

• CHAINPUT: Alloy 40t w/chainguard
• CRANK: Shimano Steps EM600
• LEVERS: Shimano Cues SL-U4000
• SPROCKET: Shimano CS-LG300 11-46t 9-Speed
• CHANGE: Shimano Cues U4000 GS Shadow
• CHAIN: KMC eGlide

COCKPIT

• HANDLEBARS: Orbea Urban, Integrated Light, Rise 54, Width 700

BRAKES

• BRAKE: Shimano MT201 Hydraulic Disc

WHEELS

• WHEEL: Alloy, Tubeless, 25c, 32H
• COVER: Vittoria e-Randonneur 50-622, Reflective band

ACCESSORIES

• PEDALS: VP-537 Black
• REAR GRILL: Orbea RR-01 Alloy, w/Mik & Mik Side and Ortlieb QL3.1 system. Max. 20Kg
• FENDER: Curana Apollo Orbit 60mm
• FRONT POSITION LIGHT: Orbea integrated, USB-C charging point
• HEADLIGHT: Supernova Starstream Pure, Low Beam
• TAIL LIGHT: Orbea Fender integrated, with alert light
• CYCLE SUPPORT: Orbea Diem Integrated
• RING: Knog OI Classic

COMPONENTS

• SEATPOST: Alloy 31.6x300mm Offset 0
• SADDLE: Selle Royal Vivo Ergo
