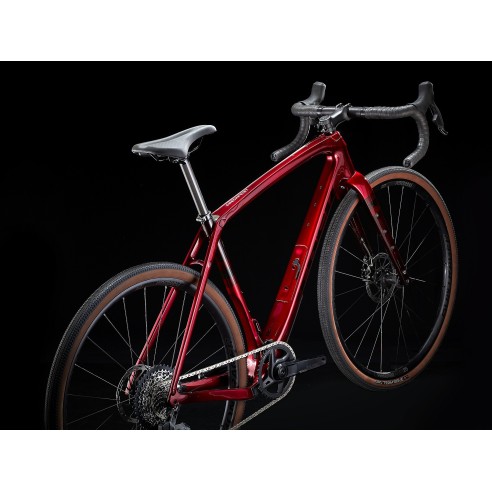

Trek Checkpoint SL 6 eTap Bicycle

The Checkpoint SL 6 eTap is a carbon gravel bike designed to explore places you could never go on a conventional road bike. A lightweight, gravel-smoothing OCLV Carbon frame with IsoSpeed, smooth and smart SRAM Rival AXS wireless electronic drivetrain, agile and stable progressive geometry, internal storage and numerous mounts make this a true gravel bike and the perfect choice for going out in search of adventure and riding on any type of terrain.

It is ideal for you if...
You want to go on epic gravel adventures, and you know you'll need the most capable bike with the best settings. You're also looking for the speed, precision and looks that SRAM's new wireless electronic drivetrain offers.

The technology that incorporates
A 500 Series OCLV Carbon frame with Rear IsoSpeed and carbon armor, a progressive geometry for high-speed stability and climbing efficiency, internal storage, hidden cables that won't interfere with bags, integrated frame bag mounts, and kickstands for racks and fenders. Plus, it features a carbon fork, a 1x12 SRAM Rival eTap AXS wireless electronic drivetrain with a wide-ratio cassette, and Paradigm Comp 25 wheels. You can even install a dropper post to lower the seat on long descents. Compatible with tires up to 45c.

The last word
Carbon gravel bike designed for the longest rides, the roughest roads, and the most epic adventures. It's light, fast, comfortable and equipped with high-end components to perform at its best in the most demanding terrain, such as the wireless electronic transmission that allows maximum quick shifting (even under load) and requires less maintenance.

You'll love it!
The SRAM Rival eTap AXS wireless drivetrain is competitively priced and allows you to customize your shifting settings via the AXS app
IsoSpeed ball joint soaks up annoying bumps without you noticing
The new progressive geometry is fast and agile, while offering stability and control on fast and tricky descents
Its discreet internal storage compartment is very useful for storing tools and accessories
Wide wheel clearance allows for tires up to 45c for increased traction and stability in all conditions

500 Series OCLV Carbon, IsoSpeed, internal cable routing, internal down tube pocket cover, 3S chain keeper, T47 BB, rack & fender mounts, integrated frame bag mounts, flat mount disc, dropper post compatible, axle 142x12mm through

frame setting

gravel

Wheel

Front wheel

Bontrager Paradigm Comp 25, Tubeless Ready, 25mm rim width, 100x12mm thru-axle

rear wheel

Bontrager Paradigm Comp 25, Tubeless Ready, 25mm rim width, SRAM XD-R 12-speed freehub, 142x12mm thru-axle

front hub

Bontrager Paradigm Comp 25, Tubeless Ready, 25mm rim width, 100x12mm thru-axle

front closure

Bontrager Switch thru-axle, removable cam

rear hub

Bontrager Paradigm Comp 25, Tubeless Ready, 25mm rim width, SRAM XD-R freehub, 142x12 thru axle

back closure

Bontrager Switch thru-axle, removable cam

Tire

Bontrager Paradigm Comp 25, Tubeless Ready, 25mm rim width

Deck

Bontrager GR1 Team Issue, Tubeless Ready, Inner Strength casing, aramid bead, 120 tpi, 700x40c

rim tape

Bontrager TLR

max size Of the cover

Bontrager Tires 700x45c / 650x2.1"

Transmission

expand_less

shift lever

SRAM Rival eTap AXS, 12-speed

Change

SRAM Rival XPLR eTap AXS, max cog. 44T

* Bottom bracket

Size: 49
SRAM Rival, 40T, DUB Wide, 165mm length

Size: 52
SRAM Rival, 40T, DUB Wide, 170mm length

Size: 54, 56
SRAM Rival, 40T, DUB Wide, 17.5mm length

Size: 58, 61
SRAM Rival, 40T, DUB Wide, 175mm length

bottom bracket

SRAM DUB, T47 threaded, internal bearing

cassette

SRAM XG-1251, 10-44, 12 speed

maximum plate size

1x: 46T, 2x: 50/37 (Shimano: 36)

Components

expand_less

*Saddle

Size: 49, 52
Bontrager Verse Comp, steel rails, 155mm width

Size: 54, 56, 58, 61
Bontrager Verse Comp, steel rails, 145mm width

seat post

Bontrager carbon, 27.2mm, 8mm offset, 330mm length

*Handlebar

Size: 49
Bontrager Elite Gravel, 15" width

Size: 52
Bontrager Elite Gravel, 40cm width

Size: 54, 56
Bontrager Elite Gravel, 42cm width

Size: 58, 61
Bontrager Elite Gravel, 44cm width

*Power

Size: 49
Bontrager Pro, 31.8mm, Blendr-compatible, 7-degree, 70mm length

Size: 52, 54
Bontrager Pro, 31.8mm, Blendr-compatible, 7-degree, 80m length
