Orbea Terra M30 Team Bike (2025)

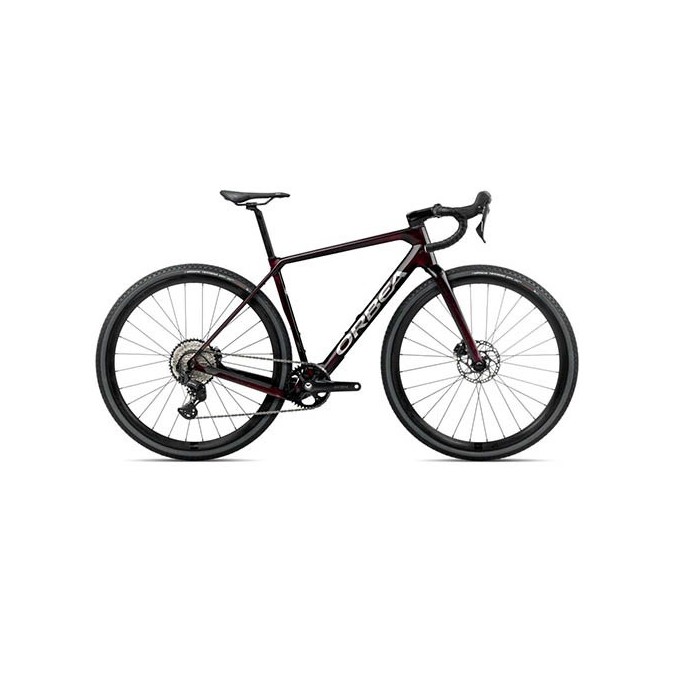

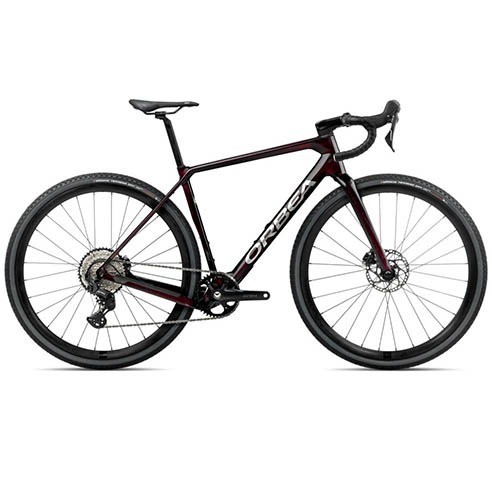

Orbea Terra M30 Team 2025 Gravel Bike in red. Orbea manufacturer reference: S14705CG

Designed by and for gravel, Terra is neither an adapted road bike nor a mountain bike with reduced weight. Terra is gravel. Enjoy greater comfort on your road rides, discover where that unexplored trail ends. There's a whole world out there, and Terra is ready to explore it with you.

SPECIFICATIONS

FRAME ASSEMBLY

• FRAME: Orbea Terra OMR Disc Carbon, Monocoque Construction, HS 1.5", PF30, Power Meter Compatible, 12x142mm Rear Thru Axle, M12x2 P1 Thread, Internal Cable Routing, LOCKR Service Box
• FORK: Orbea Terra ICR Carbon, 1-1/8" - 1.5" Tapered Steerer Tube Compatible, 12x100mm Thru Axle, M12x2 P1 Thread
• HEADSET: FSA 1-1/2" Integrated Aluminum Cup

TRANSMISSION

• CRANKSET/CRANK: Shimano GRX RX610 30x46t
• LEVERS: Shimano GRX RX610
• GEAR:Shimano GRX RX820
• DERAILLEUR: Shimano GRX RX820
• CHAIN: Shimano M6100

COCKPIT

• HANDLEBAR: OC Gravel GR31-R, Rise 15, Reach 70, Drop 110
• POWER: OC Road Performance RP22, -5º

BRAKES

• BRAKE: Shimano RX400 Hydraulic Disc

WHEELS

• WHEEL: Alloy, Tubeless, 700c, 21c
• TIRE: Vittoria Terreno Dry CX-Gravel G2.0 TNT 700x38c
• FRONT WHEEL AXLE: Orbea Thru Axle 12x100mm M12x2 P1 Solid
• REAR WHEEL AXLE: Orbea Thru Axle 12x142mm M12x2 P1 Solid inner threaded

COMPONENTS

• SEATPOST: SP 0.2 Carbon, 27.2mm, Setback 20
• SADDLE: Prologue Akero AGX black rails size 155mm
• HANDLEBAR TAPE: Orbea Eva
