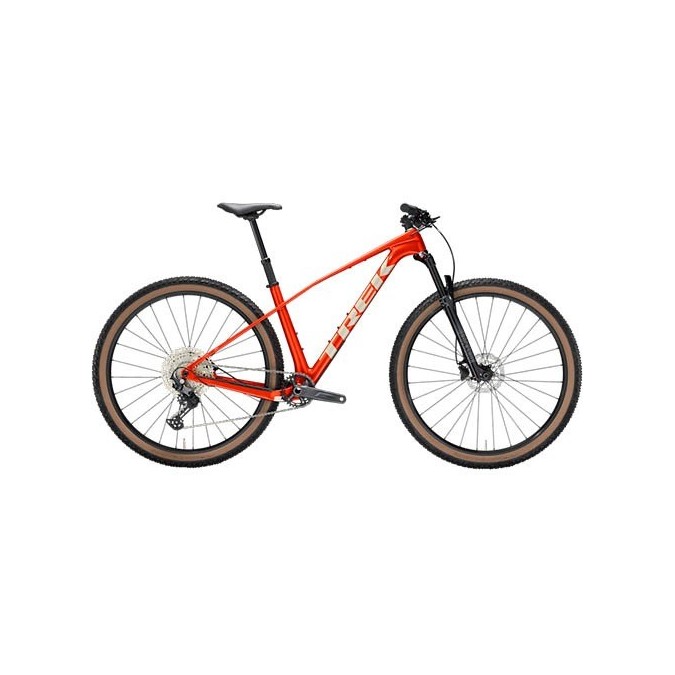

Trek Procaliber 9.5 Gen 3 Bike (2025)

Mountain Bike Trek Procaliber 9.5 Gen 3 in Red from 2025. Trek Reference: 5323524

The Procaliber 9.5 Gen 3 is a carbon hardtail race-ready bike ideal for flying down singletracks. It features IsoBow technology to absorb trail vibrations and an aggressive XC geometry that provides confidence, capability, and agility.

Frame Set

• Frame: OCLV Mountain Carbon, IsoBow, tapered head tube, internal cable routing, balanced post mount brakes, Boost148
• Fork: RockShox Judy GOLD, Solo Air spring, TurnKey lockout, tapered steerer tube, 42 mm offset, Boost110, Maxle Stealth 15 mm, 120 mm travel
• Maximum compatible fork travel: 120 mm

Wheels

• Front hub: Shimano TC500 aluminum, centerlock, 110x15 mm thru-axle
• Rear hub: Shimano TC500 aluminum, centerlock, 148x12 mm thru-axle
• Rim: Bontrager Kovee, double wall, Tubeless Ready, 28 holes, 23 mm width, Presta valve
• Tire: Bontrager Sainte-Anne RSL XTR, Tubeless Ready, dual compound, aramid bead, 60 tpi, 29x2.40"
• Max tire size: Frame: 29x2.40", Fork: See manufacturer

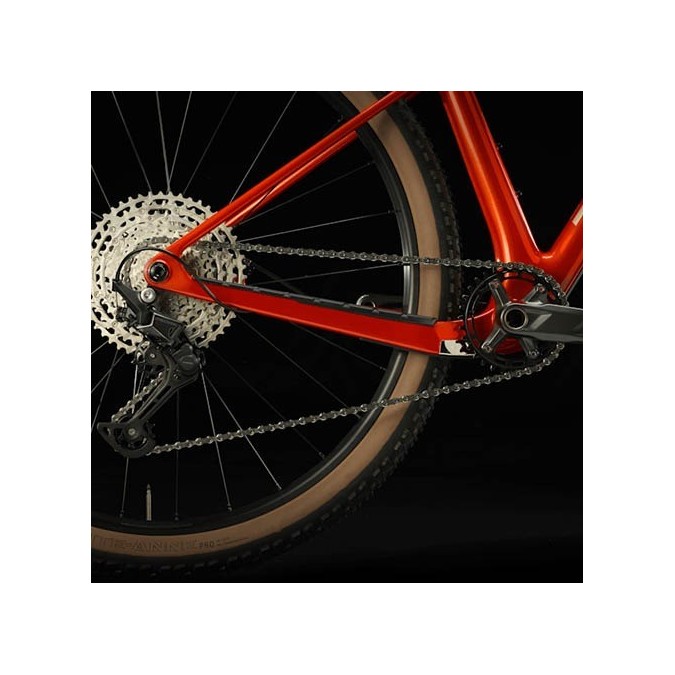

Drivetrain

• Shifter: Shimano Deore M6100, 12-speed
• Rear derailleur: Shimano Deore M6100, long cage
• Crankset: Shimano MT512, 32T chainring, 55 mm chainline, 170 mm length
• Bottom bracket: Shimano MT500, 92 mm, PressFit
• Cassette: Shimano Deore M6100, 10-51, 12-speed
• Chain: Shimano Deore M6100, 12-speed
• Maximum chainring size: 1x: 38T

Components

• Saddle: Verse Short, chromoly rails, 145 mm width
• Seatpost: Bontrager Line Dropper, 150 mm travel, MaxFlow, internal routing, 31.6 mm, 410 mm length
• Handlebar: Bontrager Rhythm Comp, aluminum, 31.8 mm, 15 mm rise, 750 mm width
• Grips: Bontrager XR Trail Comp with nylon lock-on
• Stem: Bontrager Elite, 31.8 mm, Blendr compatible, 7 degrees, 60 mm length
• Headset: FSA IS-2, 1-1/8" top, 1.5” bottom
• Brakes: Shimano MT200 hydraulic disc
• Brake rotor: Shimano RT10, centerlock, 160 mm
• Maximum brake rotor size: Frame: 180 mm, Fork: See fork manufacturer

Weight

• Weight: M - 12.13 kg / 26.75 lbs (with TLR sealant, no tubes)
• Weight limit: This bike has a maximum weight limit (combined weight of bike, rider, and cargo) of 136 kg.
