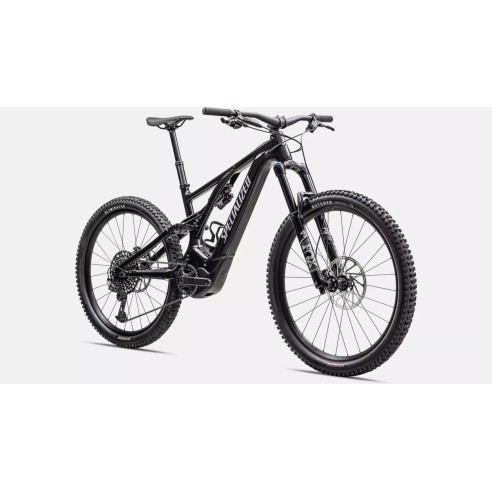

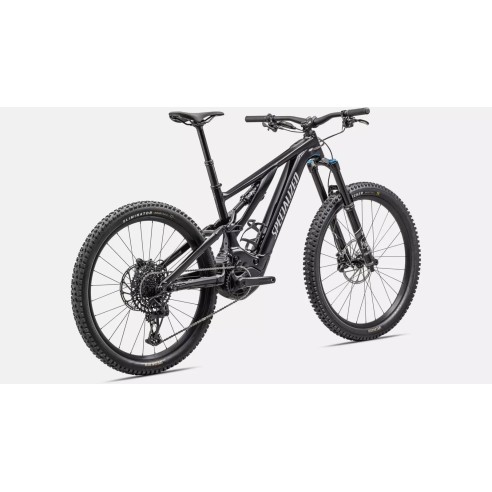

SPECIALIZED TURBO LEVO COMP ALLOY BIKE 2023

The new Levo offers incredible power to cover more trails thanks to an unmatched combination of ride quality, power and range. It's the refinement, implementation and amplification of everything we know about mountain biking: a 40-year obsession with creating the best mountain bikes in the world. Since its introduction, the Turbo Levo has set the standard for the future, it's the ultimate goal for any e-mountain bike, and this new bike raises the bar again. A potent combination of engine support, chassis, suspension and geometry to make the trail an incredible experience.

Starting with our 2.2 Full Power Turbo engine and Turbo Connect Unit (TCU), which allow the Levo smooth and fluid amplification of your effort (4x your power) and lets you choose where you ride and when you want to ride. The Levo also breaks the boundaries when it comes to range, amplifying your effort by up to five hours of ride time. Now you can ride further and explore more than ever before. And the optimized frame features 150mm of custom rear suspension and adjustable geometry that offers a stable and natural ride like no other. Because at the end of the day, what matters is the journey. Believe it.

More climbs, more descents, more kilometers, more fun. Equipped with a no-fuss SRAM SX/NX drivetrain, RockShox suspension to tame the trails, and a durable, lightweight aluminum wheelset.

     Levo's fully integrated Turbo Full Power 2.2 engine, 700 Wh battery and advanced MasterMind Turbo control unit deliver a class-leading 90 Nm of torque and 565 watts of power for up to five hours of ride time, giving you allows you to travel further and faster than ever before.
     Levo's Turbo Connect Unit (or "TCU") is more than just an "on and off" button - it's the brain of the bike. The TCU displays the battery level and power assist mode. It also communicates, via ANT+/Bluetooth®, with our optional handlebar display to show even more information about the day's ride.
     An exclusive “Mullet” design with a 27.5” wheel at the rear and 29” at the front offers an agile ride compared to other e-MTBs. The wide cockpit focuses you on the bike, optimizing traction and cornering control. A low bottom bracket, slacker head tube angle, and reduced fork offset keep you stable over rough terrain.
     The Levo offers six different geometry settings, allowing you to easily dial in your performance for any riding style and any terrain. The head tube angle can be adjusted between 63 and 65.5 degrees. The height of the bottom bracket can be adjusted up or down by 7mm.
     The Levo's 150mm of rear travel is supple in small bumps, devours square-edged hits with no twitch, soaks up any impact like it's nothing, yet offers incredible pedal response and delivers your power to the ground with utter efficiency.
     The Levo's S-Sizing is based on what matters: the size and style of the rider. Six sizes, all with similar steerer tube lengths, allow you to choose the size that best suits your individual riding style. Smaller S-numbers will be nimble and responsive, while Larger S-numbers give you more stability and a roomier ride.

Technical specifications
COCKPIT

POWER

Alloy Trail Stem, 35mm bar bore

SADDLE

Bridge Comp, Hollow Cr-mo rails, 155/143mm

TAPE

Specialized Trail Grips

HANDLEBAR

Specialized, 6061 alloy, 6-degree upsweep, 8-degree backsweep, 30mm rise, 780mm width

SEAT POST

X-Fusion Manic, infinite adjustable, two-bolt head, bottom mount cable routing, remote SLR LE lever, 34.9, S1: 100mm, S2: 125mm, S3: 150mm, S4/S5: 175mm, S6: 190mm
FRAMESET

HUG. SADDLE

Alloy, 38.6mm

CHART

Specialized M5 premium alloy, headset adjust, BB height adjust, S-Sizing, internal cable routing, 150mm travel, 148mm spacing
WHEELS

REAR HUB

Alloy, sealed cartridge bearings, 148mmx12mm thru-axle, 28h

FRONT HUB

Alloy, sealed cartridge bearings, 15x110mm thru-axle, 28h

FRONT TIRE

Butcher, GRID TRAIL casing, GRIPTON® T9 compound, 2Bliss Ready, 29x2.6"

RADIOS

DT Swiss Industry

REAR TIRE

Eliminator, GRID TRAIL casing, GRIPTON® T7 compound, 2Bliss Ready, 27.5x2.6"

TIRES

Specialized 29, hookless alloy, 30mm inner width, tubeless ready

CAMERAS

Standard, Presta Valve
e-bike

CABLING

Custom Specialized wiring harness

CHARGER

Custom charger, 42V4A w/ Rosenberger plug, 100-240V

ENGINE

Specialized 2.2 Custom Rx Trail Tuned Motor

BATTERY

Specialized M3-700, Integrated battery, 700Wh

UI/REMOTE

Specialized MasterMind TCU, percentage of remaining charge, 120 possible display configuration s, MicroTune assist adjustment, over-the-air updates, ANT+/Bluetooth®, w/Handlebar remote
SUSPENSION

SHOCK ABSORBER

FOX FLOAT X Performance, LSR, 2-position lever, 55x210mm

FORK

Fox Rhythm 36, S1: 150mm travel, S2-S6: 160mm travel
DRIVETRAIN

bottom bracket

Praxis Forged/Custom Offset/ISIS Spindle Interface, 160mm

CHANGE

SRAM GX Eagle, 12-speed

SHIFT KNOBS

SRAM GX, trigger, 12-speed

CHAIN

SRAM NX Eagle, 12-speed

DISHES

SRAM X-Sync Eagle, 104 BCD, 34t, steel

CASSETTE

Sram XG-1275, 12-speed, 10-52t
BRAKES

BACK BRAKE

SRAM Code R, 4-piston caliper, hydraulic disc, 200mm

FRONT BRAKE

SRAM Code R, 4-piston caliper, hydraulic disc, S1-S3: 200mm, S4-S6: 220mm
