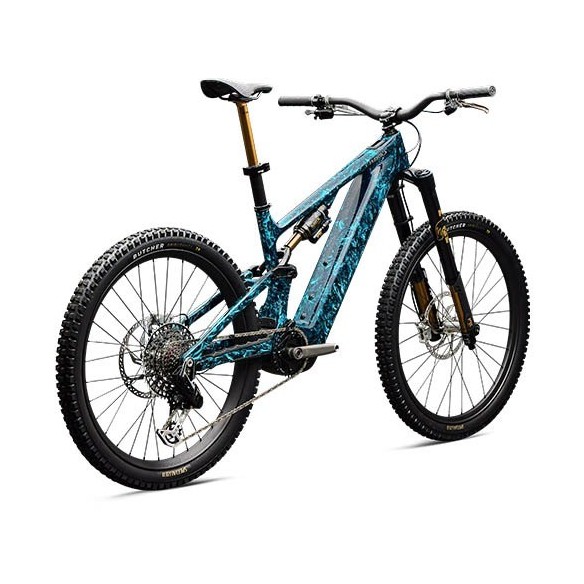

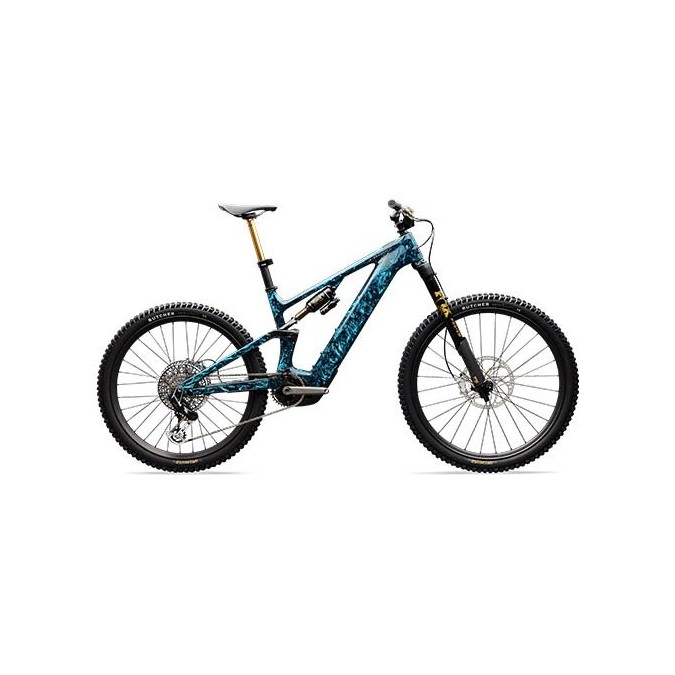

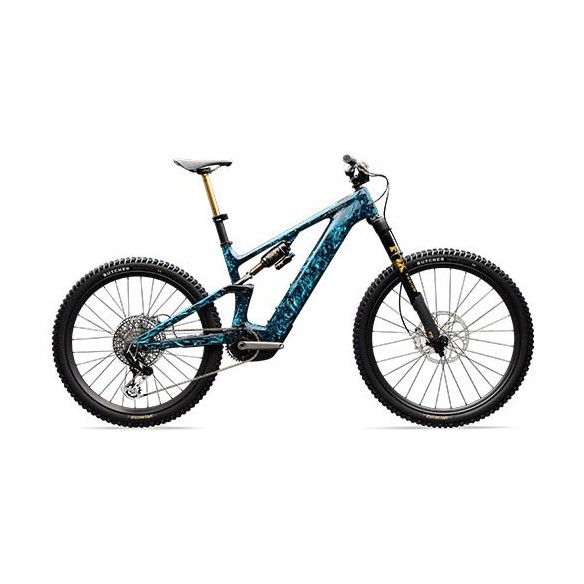

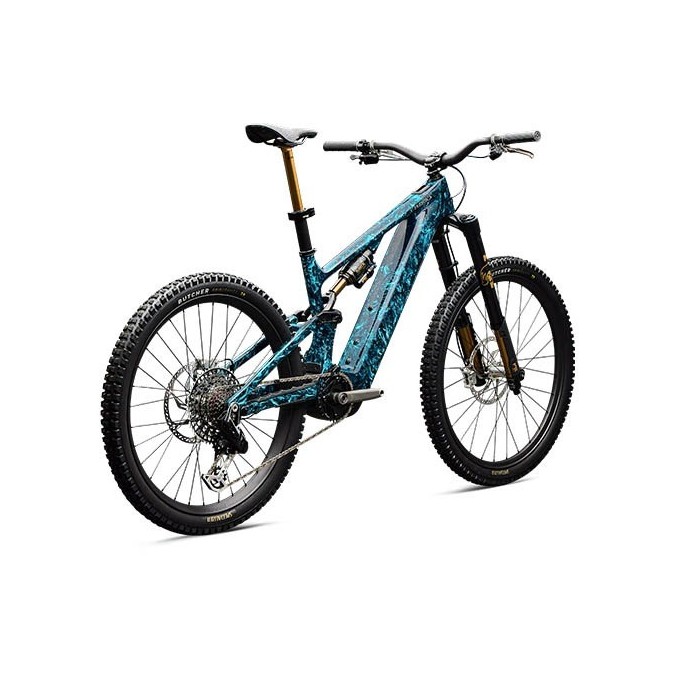

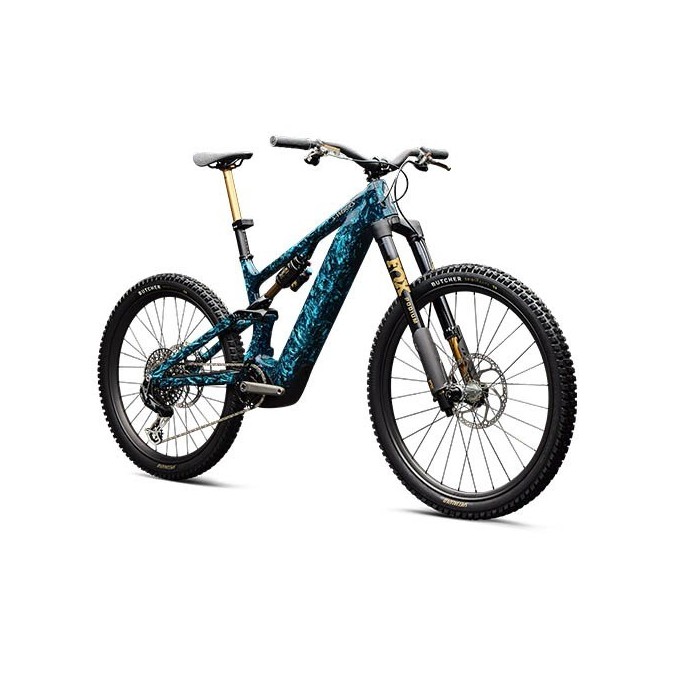

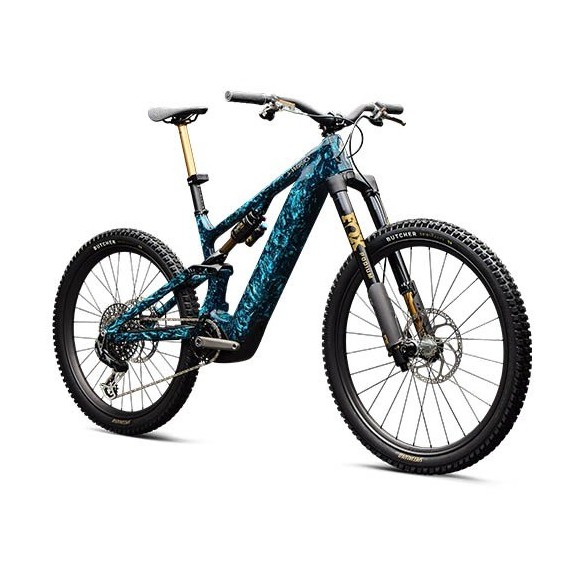

Specialized S-Works Turbo Levo 4 LTD Astral Blue 840Wh Bike (2026)

Specialized S-Works Turbo Levo 4 LTD 2026 electric bike, 111 Nm torque, 720 W power, 840 Wh battery. Manufacturer's reference: 96426-0103

The Specialized Science Club presents the S-Works Levo 4, an e-MTB so advanced that it merges you with the machine, transforming you into a true MTB cyborg. Together, you are ready to conquer any terrain because you are a superhuman force with superior power, traction, control, and range.

Technical Specifications

E-Bike

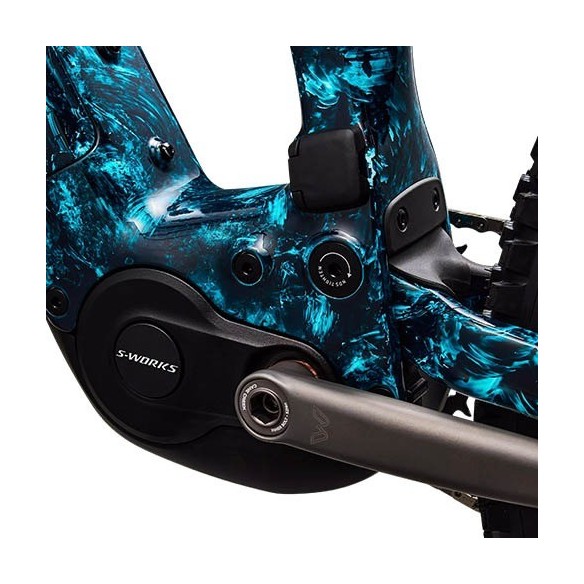

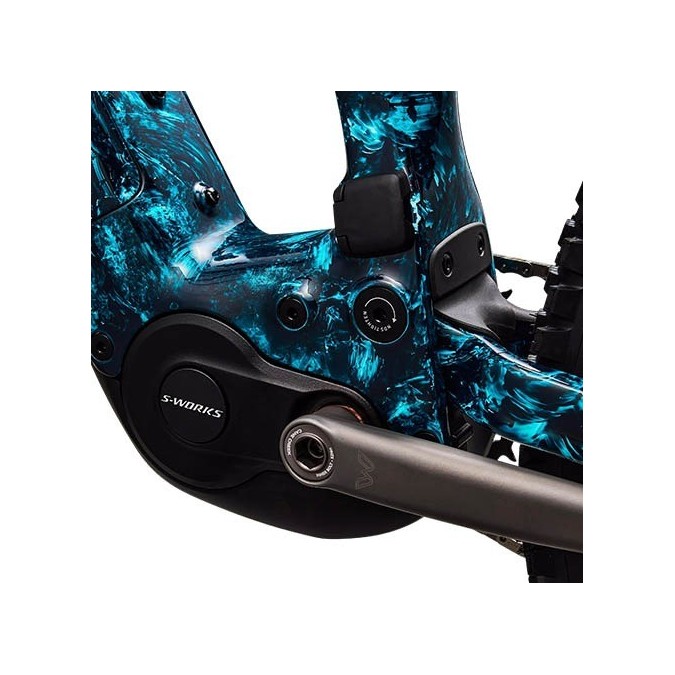

• Motor: All New Specialized 3.1 S-Works motor, 111 Nm torque, 720 W power
• Battery: 840 Wh

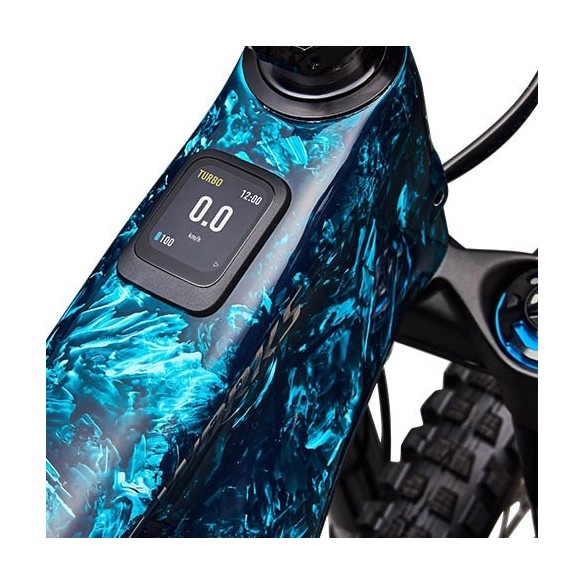

• Display/Remote Control: Mastermind TCU 2.2" high-resolution, fully customizable with the Specialized app, compatible with Apple Find My
• Charger: Specialized Smart Charger 12A with 4 charging modes (Standard, Fast, Eco, and 80%)

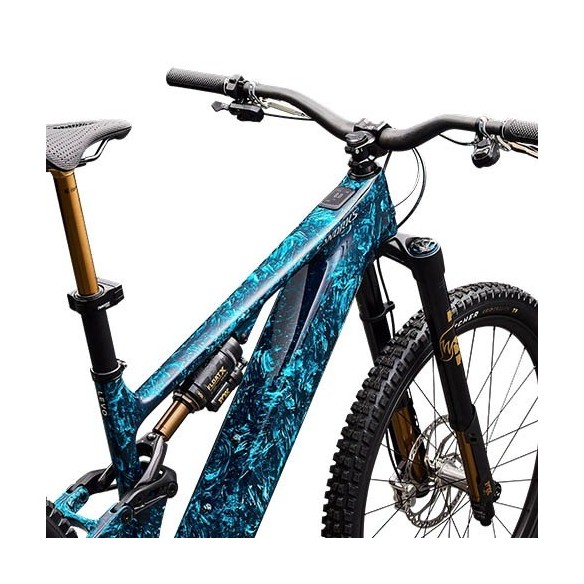

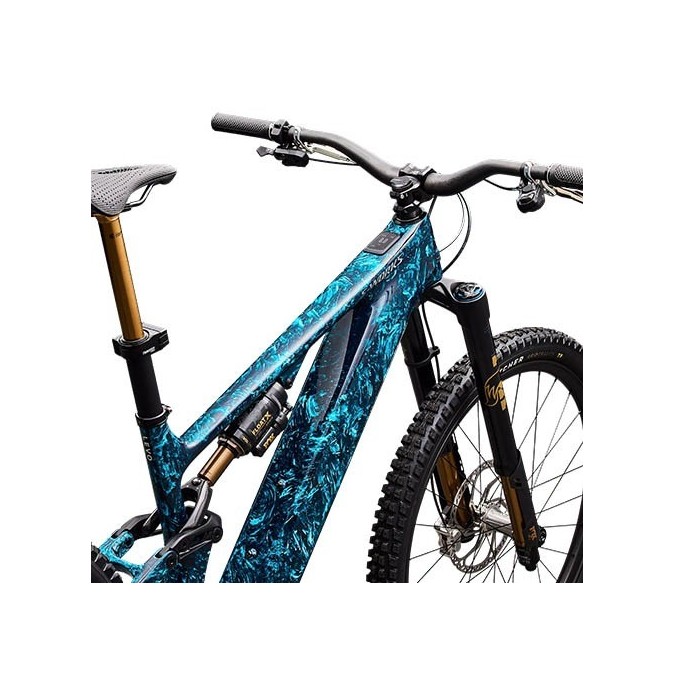

Frame

• Frame: S-Works Levo 4 Carbon, 150mm travel, carbon shock extender, SWAT storage, side-mounted battery, compatible with forks up to 180mm
• Seat clamp: Aluminum, 38.6mm

Suspension

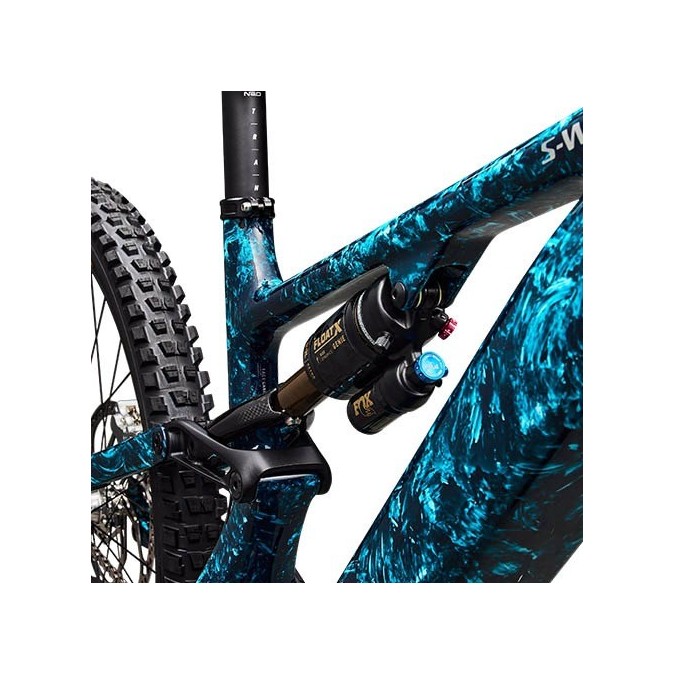

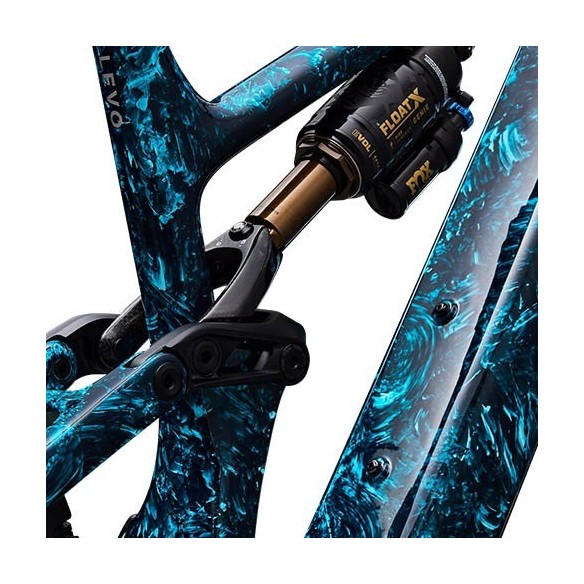

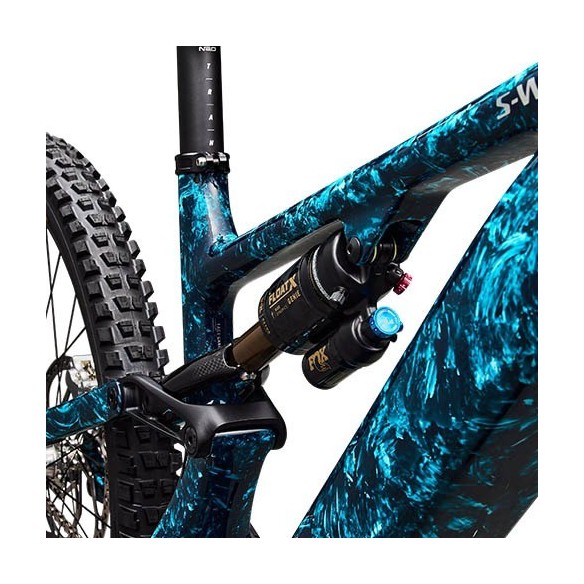

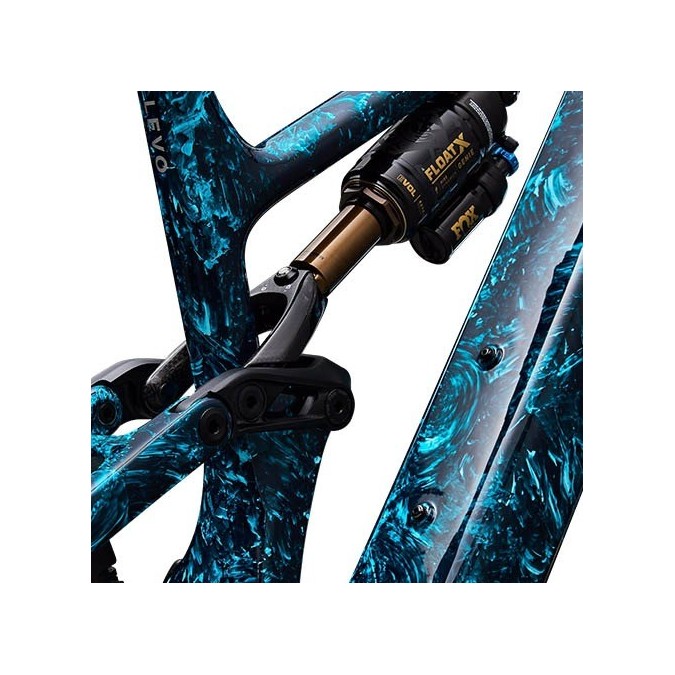

• Rear shock: FOX FLOAT X Factory with GENIE Shock technology, Trail Tune Ride Dynamics, 2-position lever, LSR adjustment, 210x55mm size
• Fork: FOX Factory Podium, GRIP X2 cartridge, high/low-speed rebound and compression adjustment, 160mm travel, 20x110mm thru-axle, 44mm offset

Brakes

• Front brake: Trickstuff Maxima 4-piston, 223mm rotor
• Rear brake: Trickstuff Maxima 4-piston, 223mm rotor

Drivetrain

• Shifters: SRAM AXS POD Ultimate Controller with Discrete Clamp
• Rear derailleur: SRAM XX Eagle Transmission
• Cassette: SRAM XX Eagle Transmission, 12-speed, 10-52T
• Chain: SRAM XX Eagle Transmission Flattop
• Cranks: Cane Creek Electric Wings titanium
• Chainstay protector: 3D printed, 160 mm
• Crankset: SRAM 34T T-Type, BCD 104, steel

Wheels and Tires

• Front wheel: Traverse HD I9 Hydra 2, 29", 20x110 mm, 28h, 30 mm internal width carbon rim
• Front tire: Butcher GRID GRAVITY, GRIPTON T9 compound, TLR, 29x2.4"
• Rear wheel: Traverse HD I9 Hydra 2, 27.5", 12x148 mm, 32h, 30 mm internal width carbon rim, XD driver
• Rear tire: Butcher GRID GRAVITY, GRIPTON T9 compound, TLR, 27.5x2.4"
• Inner tubes: Standard, Presta valve

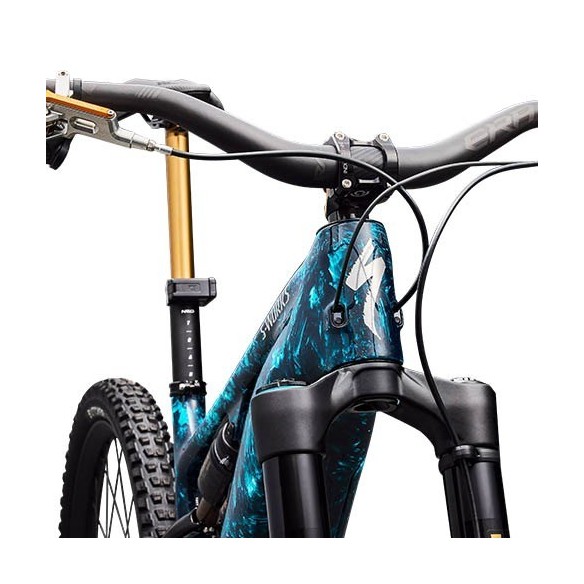

Cockpit

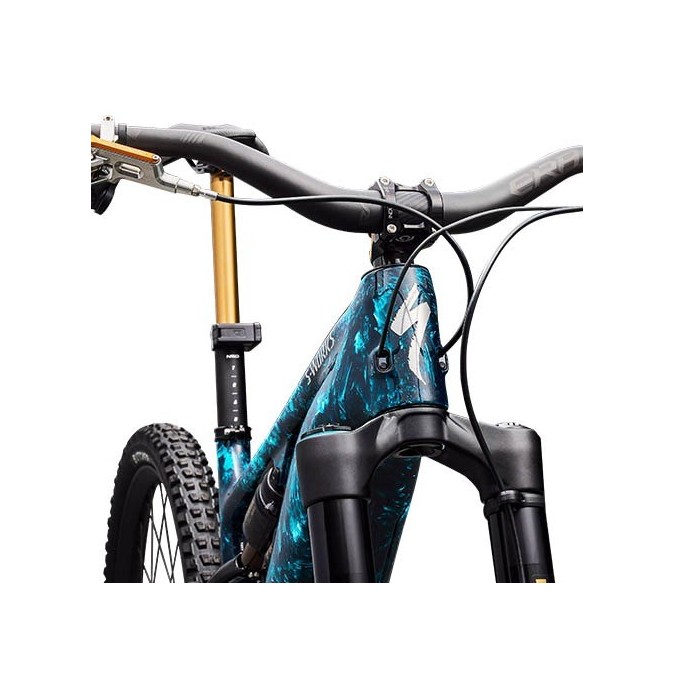

• Stem: Industry 9 Mountain Stem, 35 mm clamp, 40 mm length
• Handlebar: Race Face Era Carbon, 35 mm clamp, 8° backsweep, 5° upsweep, 800 mm width (S1/S2: 40 mm rise, S3-S6: 55 mm rise)
• Grips: Deity Lockjaw
• Saddle: Specialized Power Pro Mirror with hollow titanium rails
• Seatpost: FOX Transfer NEO Factory, 34.9 mm diameter, S2: 125 mm / S3: 175 mm / S4-S6: 200 mm

Accessories

• SWAT: Internal storage in downtube

Product Details

• Identifier: 221340
• Certification: Complies with UL 2849 (e-bike system) and UL 2271 (battery) standards

by UL Solutions and/or SGS

• Weight: 24.0 kg (52 lb, 14.6 oz)
• Size: S4
