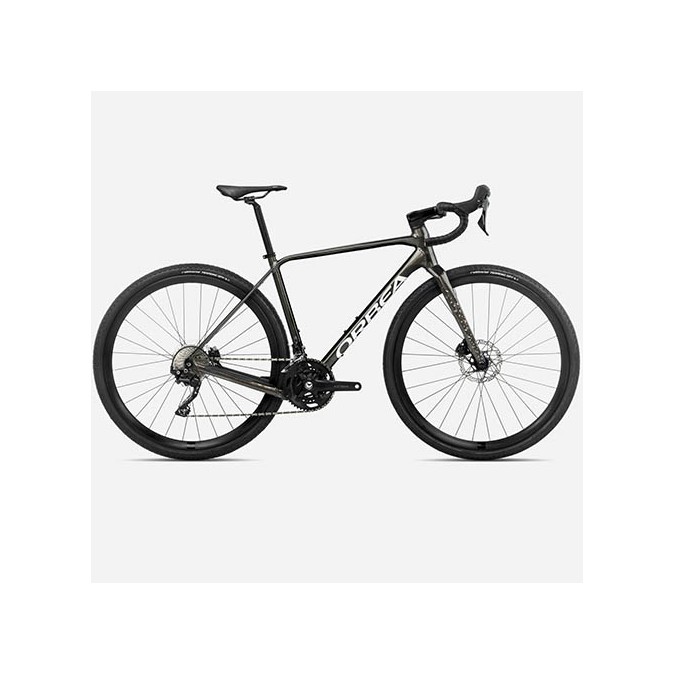

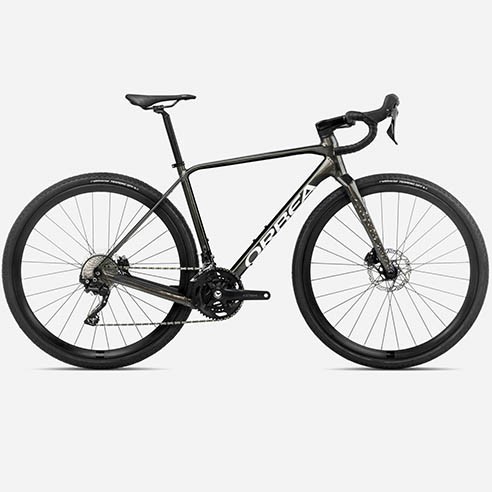

Orbea Terra H40 Bike (2025)

Orbea Terra H40 2025 Gravel Bike in Black. Orbea Manufacturer Reference: S142

Designed by and for gravel riding, Terra is neither a converted road bike nor a slimmed-down mountain bike. Terra is gravel. Enjoy greater comfort on your road rides, discover where that unexplored trail ends. There's a whole world out there, and Terra is ready to explore it with you.

SPECIFICATIONS

FRAMESET

• FRAME: Orbea Terra Hydro disc, hydroformed triple butted aluminum, HS 1.5", PF, Thru Axle 12mm x 142mm rear, thread M12x2 P1, DT internal cable routing, 27.2mm seat tube, MMS system
• FORCE: Orbea Terra ICR, full carbon, 1-1/8" - 1.5" tappered head tube compatible, Thru axle 12x100mm, thread M12x2 P1
• HEADSET: FSA 1-1/2" Integrated Aluminum Cup

TRANSMISSION

• CRANKSET/CRANK: Shimano GRX RX600-10 30x46t
• LEVERS: Shimano ST-RX400
• SPROCKET: Shimano Tiagra HG-500 11-34t 10-Speed
• CHANGE: Shimano RD-RX400
• DERAILLEUR: Shimano GRX RX400
• CHAIN: KMC X10

COCKPIT

• HANDLEBAR: OC Gravel GR31-R, Rise 15, Reach 70, Drop 110
• POWER: OC Road Performance RP22, -5º

BRAKES

• BRAKE: Shimano RX400 Hydraulic Disc

WHEELS

• WHEEL: Alloy, Tubeless, 700c, 21c
• COVER: Vittoria Terreno Dry Gravel 700x38c
• FRONT WHEEL AXLE: Orbea Thru Axle 12x100mm M12x2 P1 Solid
• REAR WHEEL AXLE: Orbea Thru Axle 12x142mm M12x2 P1 Solid inner threaded

COMPONENTS

• SEATPOST: SP 0.2 Carbon, 27.2mm, Setback 20
• SADDLE: Prologue Akero AGX black rails size 155mm
• HANDLEBAR TAPE: Orbea Eva
