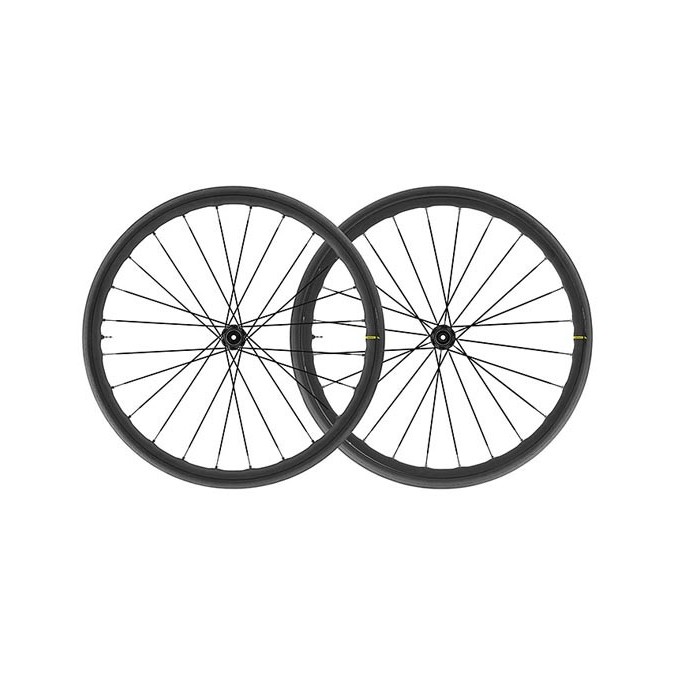

ROAD WHEELS MAVIC KSYRIUM ELITE UST DISC DCL

Road wheels Mavic ksyrium elite ust disc. Mavic product code: LP8941100. Updated with Road Tubeless technology and optimized for disc-brake performance, this proven performer is lightweight, strong and versatile.

Specifications<?xml:namespace prefix = "o" ns = "urn:schemas-microsoft-com:office:office" />

Compatibility

• Front axle: 12mm thru axle, easily convertible to quick release with included adapters. Convertible to 15mm with complete axle replacement

• Rear axle: 12mm thru axle, convertible to Quick Release with included adapters

• Freewheel: Shimano/Sram, convertible to Campagnolo and XD-R with optional driver bodies

Compatible Adapters and freewheel bodies

• ID360 Shimano / Sram freewheel body (LV3430100 - Delivered on the wheel)

• ID360 XD-R freewheel body (LV2580100)

• ID360 Campagnolo freewheel body (LV3440100)

• ID360 Shimano / Sram Light freewheel body (LV3850100)

• 12x135 rear axle adapters (LV2510900)

• 12 to 9mm rear adapter for quick release (LV2510800 - Delivered with the wheel)

• 12x142 rear axle adapters (LV2510700 - Delivered with the wheel)

• 15mm axle (LV2373500)

• 12 to 9mm front adapter for quick release (LV2680300 - Delivered with the wheel)

Weight

• Pair without tyre: 1670 grams

• Front without tyre: 770 grams

• Rear without tyre: 900 grams

Hubs

• Auto adjust sealed cartridge bearings (QRM Auto), front and rear

• Front: Quick release, 12x100 and 15x100 through axle compatible

• Rear: Quick Release, 12x142 and 12x135 compatible

• Freewheel: Instant Drive 360

• Front and rear bodies: aluminum

• Axle material: aluminum

Intended Use

• Max. Pressure: see indication on wheel and tyre. If they differ, use the lowest of the 2

• For a longer longevity of the wheel, Mavic recommends that the total weight supported by the wheels don't exceed 120kg, bike included

• ASTM CATEGORY 2 : road and offroad with jumps less than 15cm

• Recommended tyre sizes: 25 to 32 mm

Rims

• Height: 22 mm

• ETRTO size: 622x19TC Road

• Weight reduction: ISM 4D

• Internal width: 19 mm

• Disc brake specific profile

• Valve hole diameter: 6.5 mm

• Tyre: UST Tubeless and tubetype

• Drilling: Fore

• Joint: SUP

• Material: Maxtal

Spokes

• Material: steel

• Shape: straight pull, flat

• Lacing: front crossed 2, rear Isopulse

• Nipples: Fore integrated aluminum

• Count: 24 front and rear

Tyre

• Front and Rear Tread: 11 Storm single compound

• Yksion Pro UST

• UST Tubeless Ready

• Dimension: 25-622 (700x25c)

• Breaker: Polyamide, from bead to bead

• Casing: 127 TPI

Versions

• Disc standard: Center Lock(R) only

• Color: Black only

Delivered with

• Tyre sealant syringe

• Rear QR adapters for Instant Drive 360

• Mavic tyre sealant (rear wheel)

• Front QR adapters

• UST valve and accessories

• User guide
