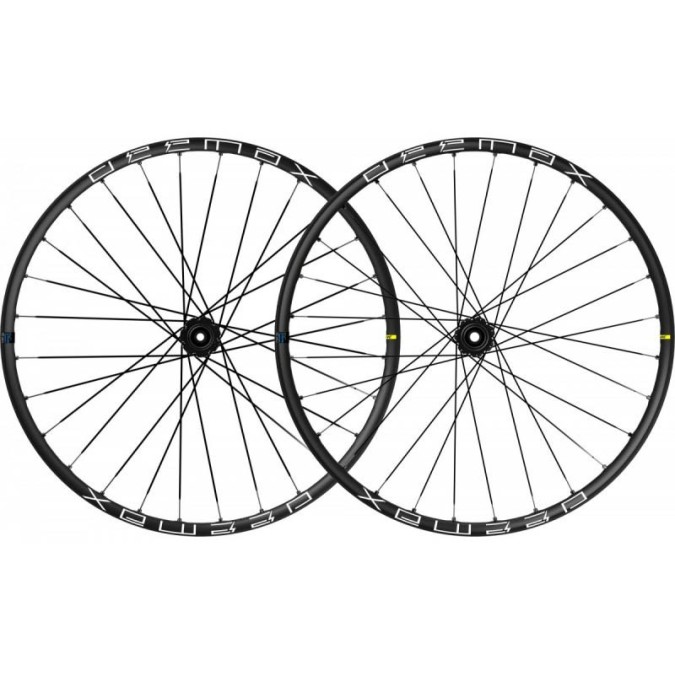

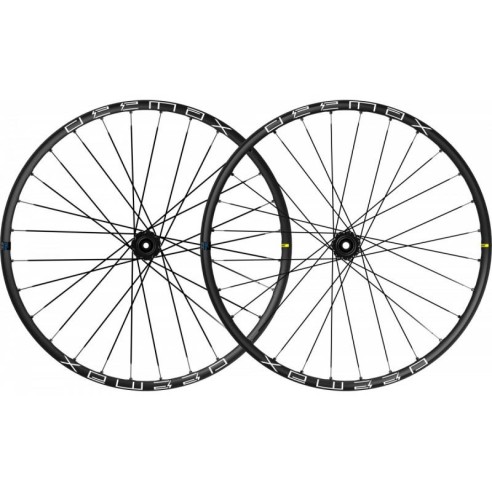

Mavic E-Deemax 30 boost 29 6A XD wheelset

Mavic E-Deemax 30 29 Boost XD 6-bolt disc wheels. Mavic product code: LP1632110. A super-strong 30mm e-bike rim, tubeless compatible and featuring PFP technology. The rim is welded and built with 28 double-butted spokes on downhill-inspired hubs. The reliability and robustness of E-Deemax for you.

Tough and durable

Welded rim with Pinch Flat Protection for:

Reduced risk of punctures

Super-tough rim profile

Perfectly sealed rim profile

Reliable, e-bike-specific construction

28 double-butted spokes

Super-reliable ID 360 double-ratchet e-free hub

Hubs inspired by downhill riding

Tubeless-compatible technology

The tubeless rim profile with tubeless rim tape makes it easy to use tubeless tires for increased traction and a reduced risk of punctures. The E-Deemax name has become synonymous with e-bike riders, and this new E-Deemax 30 lives up to its name with many of the same features and technologies as the higher-end model, but at a much more affordable price. One of the key factors is our Pinch Flat Protection technology, a rim design with a wider contact patch on the top of the sidewall to significantly reduce the risk of tire cuts and punctures. The rim is welded for increased reliability and features a 30mm internal width with Tubeless Ready compatibility, allowing you to run lower tire pressures for improved traction and control.

Like all our E-Deemax wheelsets, this new option is lab and field validated for a maximum total weight of 180 kg.

Our Instant Drive 360 ​​freehub with a double ratchet system equips the rear hub, providing fast engagement and maximum reliability.

SPECIFICATIONS

Lightweight

Drilling: Traditional

E-bike specific rim profile

Tire: UST Tubeless and tubed

ETRTO 29 size: 622x30TC

Puncture protection (minimizes the risk of tire cuts and punctures)

Asymmetric rim design

SUP welded joint technology

Spokes

Type: Straight, flat

Quantity: 28 front and rear

Spoke pattern: Triple cross front and rear

Hydrators

QRM Auto automatic bearing preload technology

Instant Drive 360 ​​freehub technology

Axles: Front 15x110 Boost; Rear 12x148 Boost

The hub is available with 6-bolt brake rotors.

Versions

Disc mounting standard: 6-bolt

Hub width: Boost only (110 front, 148 rear)

Freehub: SRAM XD

Diameter: 29''

Compatible adapters and freehub bodies

Boost and Non-Boost: 15mm front hub cap (LV2372500)

20 to 15mm Boost front adapter (12982801)

Boost: Tightening caps (V2374401)

Shimano HG9 ID 360 alloy freehub body (V3780101)

Shimano Micro Spline ID 360 alloy freehub body (V3990101)

Shimano ID 360 steel freehub body (V3790101)

Sram XD ID 360 Freehub Body (V3740101)

Boost: Tightening Caps (V2650401)

Boost 20mm: 20x110 Boost Front Hub Cap (V2680401 - Not supplied with the wheel, compatible only with 6-bolt INT hubs)

Supplied with:

UST Valve and Accessories

Pre-installed Tubeless Rim Tape

Spare Spokes (two with the front wheel and four with the rear)

Intended Use

ASTM CATEGORY 5: DOWNHILL-CENTERED MTB

Maximum tire pressure: 2.95 bar/43 PSI with a 52mm tire - 1.55 bar/22 PSI with a 125mm tire

Recommended tire sizes: 60 to 76 mm (from 2.35 3)

For longer wheel life, Mavic recommends that the total weight supported by the wheels does not exceed 180 kg, including the e-bike.
