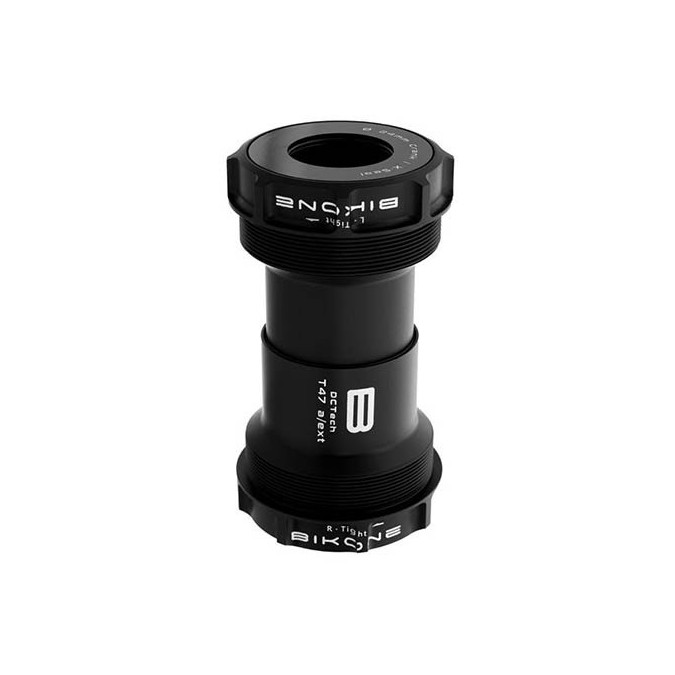

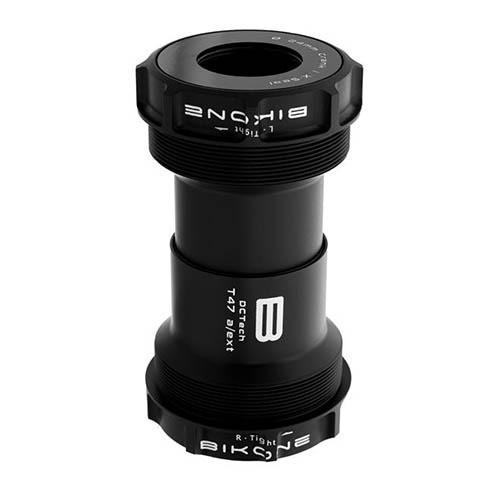

Bikone DCTech T47 External Bottom Bracket 24mm Shimano

Bikone DCTech T47 External Bottom Bracket Axle 24mm Shimano. Bikone Reference: 35010266001603

The DCTech T47 external bottom bracket for Shimano cranks is designed for cyclists who demand maximum performance and durability, whether tackling challenging mountain trails or enjoying the road.

Thanks to our double cup technology (DC Tech) and high-quality ceramic bearings, our bottom bracket will allow you to enjoy a smooth pedaling experience.

For proper compatibility, mountain bike cranks should always be mounted on mountain bike frames and road bike cranks on road bike frames.

Mounting Specifications:

• Crankset Diameter: 24 mm (Shimano)
• Frame Width: 68-73 mm (This model is available for both mountain bikes) (mountain and road)
• Frame diameter: T47
• For threaded frames
• This bottom bracket uses a standard T45/T47 axle for mounting and dismounting. 52 mm outer diameter and 48.2 mm inner diameter. 16 notches.

Weight:

113 grams

Features of the DCTech T47 External for Shimano:

• Double cup technology. Two aluminum cups perfectly align the bearings on both sides, creating a solid central connection that eliminates any noise or movement. This bottom bracket uses steel bearings (ABEC5/P5 – 2RS). Our bottom bracket cups are made from 7075 aluminum, a high-strength aerospace-grade aluminum that we heat-treat to T6. This makes the material harder and more durable, ensuring that our cups maintain optimal performance over time. Fully sealed. Axial seals on bearings and full sealing on all surfaces.

This bottom bracket is compatible with the following replacements:

• 6806 Steel Bearing
• 6806 Bearing Kit for Shimano
• Adapters for PF46 / PF30 / BB30 / T47 / EVO / BBright / T45 for Shimano
