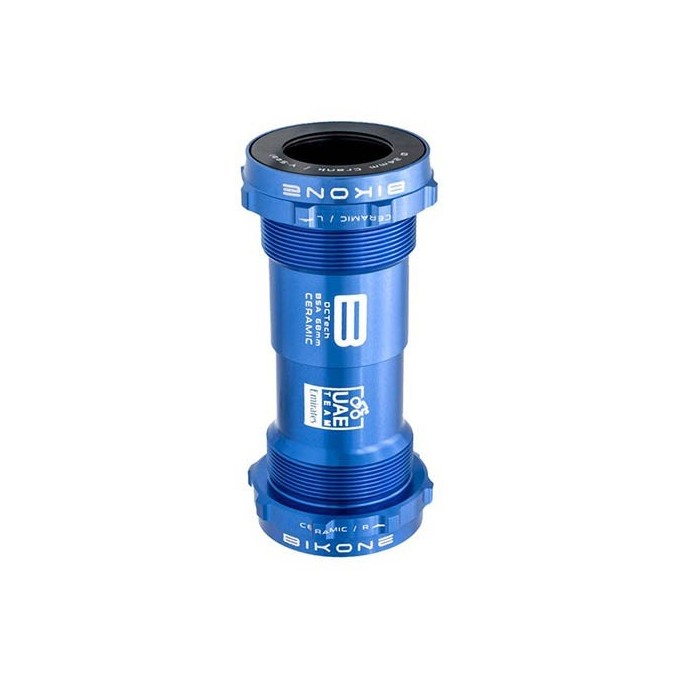

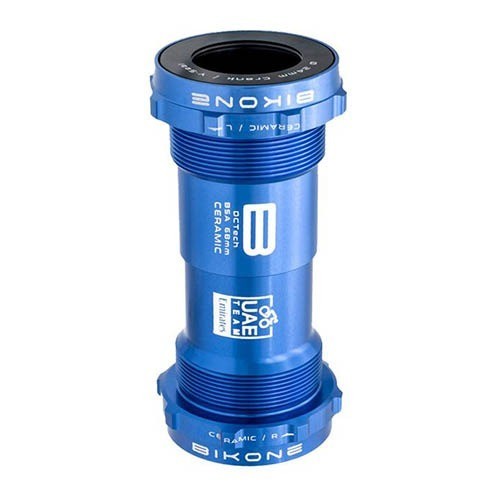

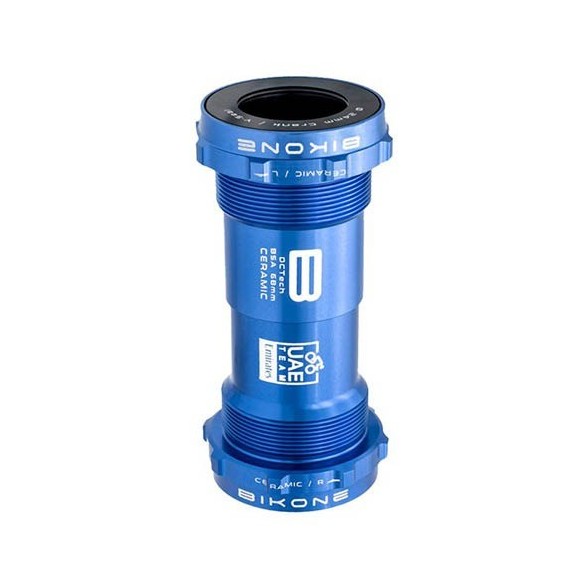

Bikone DCTech BSA Road Ceramic UAE Bottom Bracket 24mm Shimano

Bikone DCTech BSA Road Ceramic UAE Bottom Bracket 24mm Shimano. Bikone reference: 35010257001603

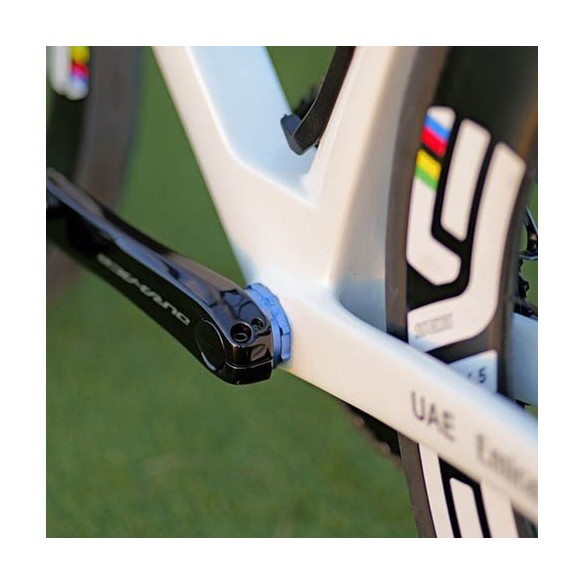

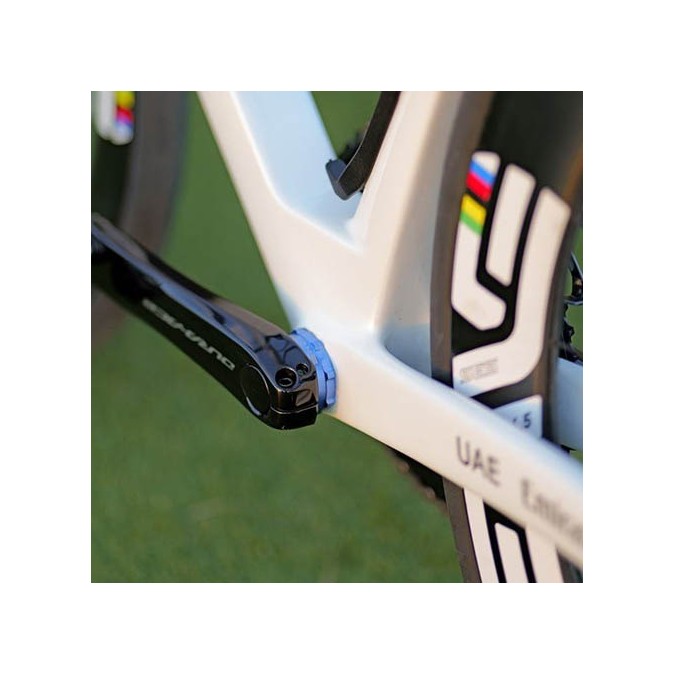

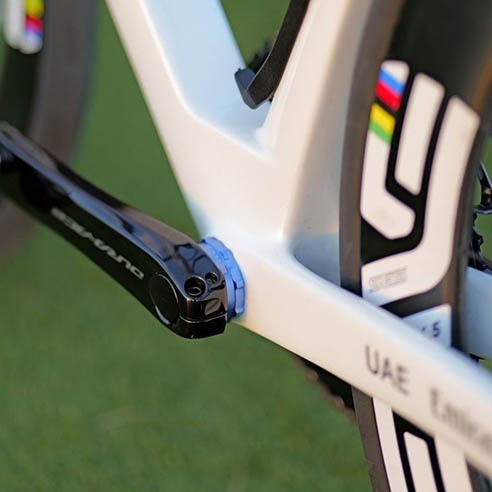

The DCTech BSA Road Ceramic UAE bottom bracket for Shimano is specially designed for UAE Team Emirates bicycles. Mounted on the new Y1R and V5R, we believe in the bottom bracket as the core of the powertrain that transfers the energy of each pedal stroke, transforming it into the power that propels the cyclist in the race.

The BSA Shimano Road Ceramic UAE bottom bracket is designed for road cyclists who value exceptional smoothness and maximum performance. Our ceramic bearings reduce friction to offer the greatest smoothness, making every pedal stroke feel effortless. Because the road to victory deserves the best.

Technical Specifications

Mounting Specifications

• Crankset Diameter: 24mm (Shimano)
• Frame Width: 68mm (Road Bike Compatible)
• Frame Diameter: BSA
• For Threaded Frames

This bottom bracket uses a standard BSA/ITA tool for assembly and disassembly. Outer diameter: 44mm and inner diameter: 42.7mm. 16 notches.

Weight

94 grams

Features of the DCTech BSA Road Ceramic UAE for Shimano

• Dual-cup technology. Two aluminum cups perfectly align the bearings on both sides, creating a solid central connection that eliminates any noise or movement. Learn more about our technology here.
• This bottom bracket uses hybrid ceramic bearings (ABEC5/P5 – 2RS).
• The cups of our bottom bracket are made of 7075 aluminum, a high-strength aerospace-grade aluminum to which we apply a T6 treatment. This makes the material harder and more durable, ensuring that our cups maintain optimal performance over time.
• Fully sealed. Axial seals on the bearings and sealing on all surfaces.
• Lighter. The number of pins on this bottom bracket has been reduced to make it lighter.
