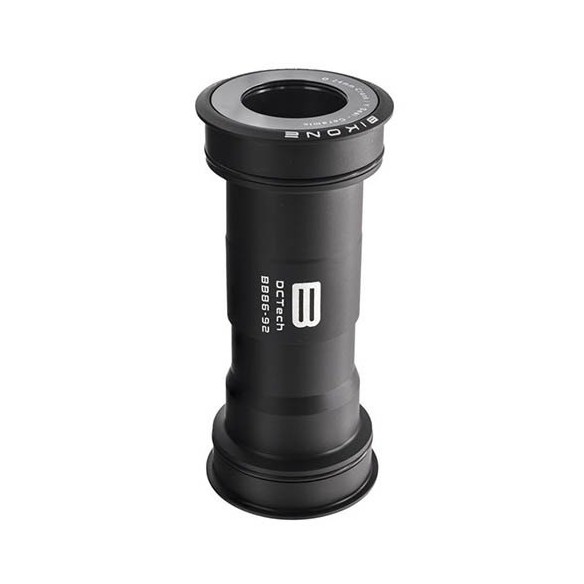

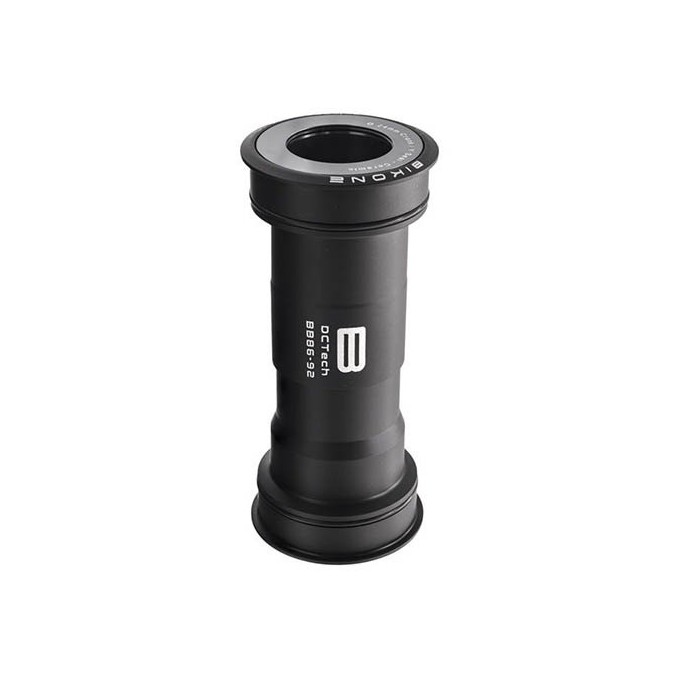

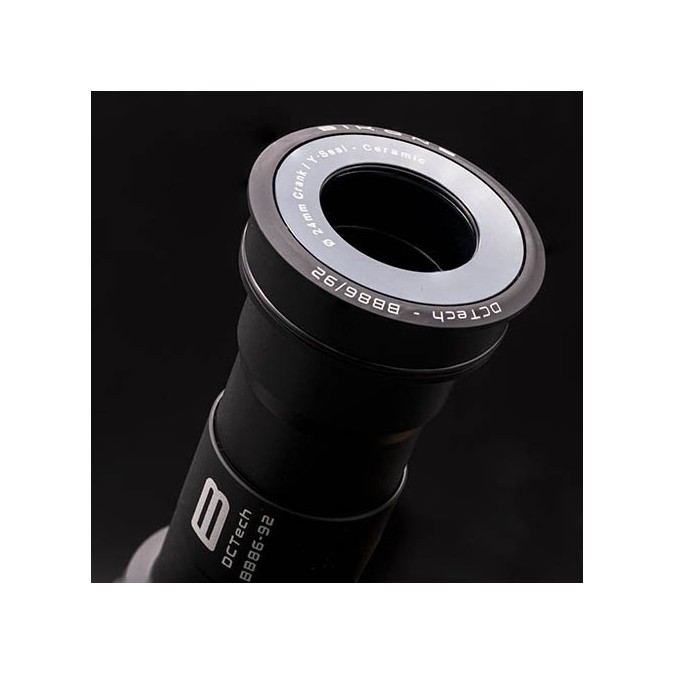

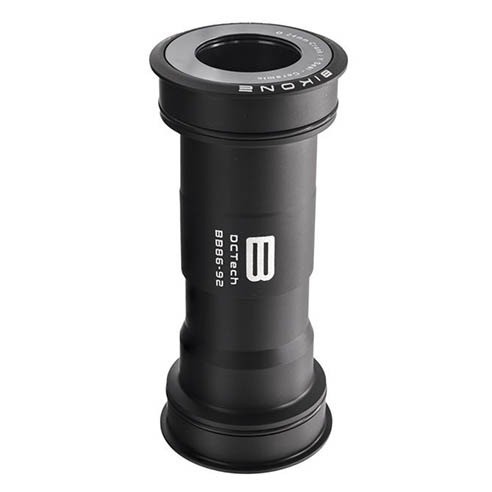

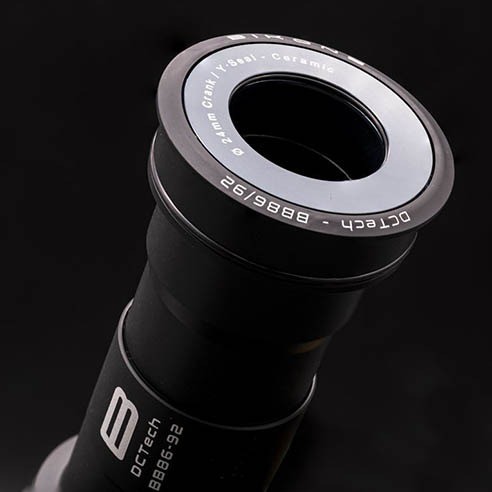

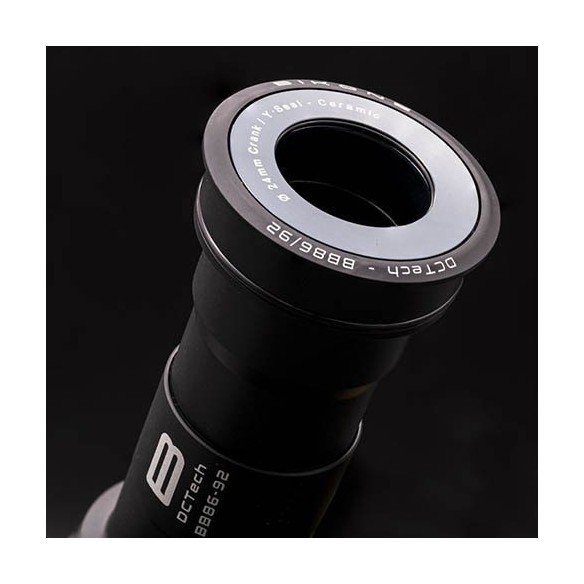

Bikone DCTech BB86/92 Bottom Bracket 24mm Ceramic Shimano

Bikone DCTech BB86/92 24mm Ceramic Bottom Bracket Shimano. Bikone Reference: 35010343001603

The BIKONE DCTech BB86-92 Shimano Ceramic bottom bracket is designed for cyclists who demand the best in performance and durability, whether they're tackling challenging mountain trails or cruising smooth roads.

Thanks to our Dual Cup (DC Tech) technology and high-quality ceramic bearings, you'll experience the smoothest possible pedal stroke.

For proper compatibility, mountain bike cranks should always be mounted on mountain bike frames and road bike cranks on road bike frames.

Mounting Specifications:

• Crankset Diameter: 24 mm (Shimano)
• Frame Width: 86.5 mm to 92 mm (Compatible with mountain bikes and road bike)
• Frame diameter: 41 mm
• For Pressfit frames
• Weight: 92 grams

DCTech BB86-92 Ceramic for Shimano Features:

• Double cup technology. Two aluminum cups perfectly align the bearings on both sides, creating a solid central seal that eliminates any noise or movement issues. Learn more about our technology here.
• This bottom bracket uses hybrid ceramic bearings (ABEC5 / P5 - 2RS).
• Our bottom bracket cups are made from 7075 aluminum, a high-strength aerospace-grade aluminum that we heat-treat to T6. This makes the material harder and more durable, ensuring our cups maintain peak performance over time.
• Fully sealed. Axial seals on the bearings and fully sealed on all surfaces.

This bottom bracket is compatible with the following replacement parts:

• 6805 ceramic bearing
• 6805 ceramic bearing kit for Shimano
• ABSA / BB86-92 / ITA adapters for Shimano
