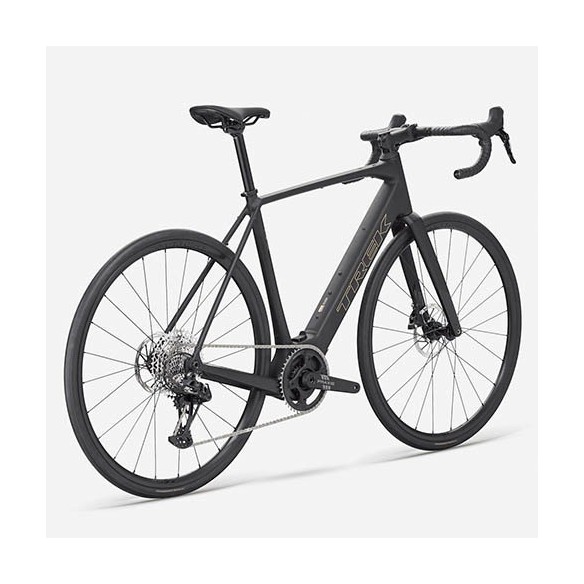

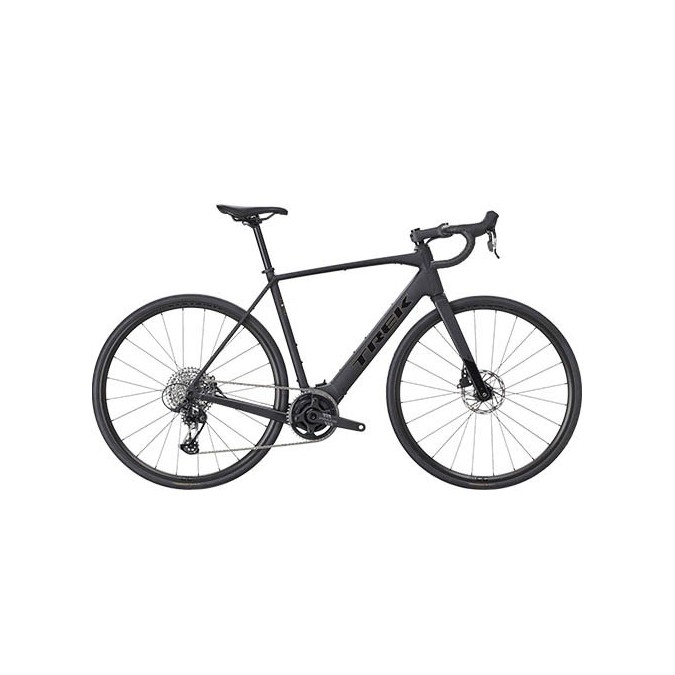

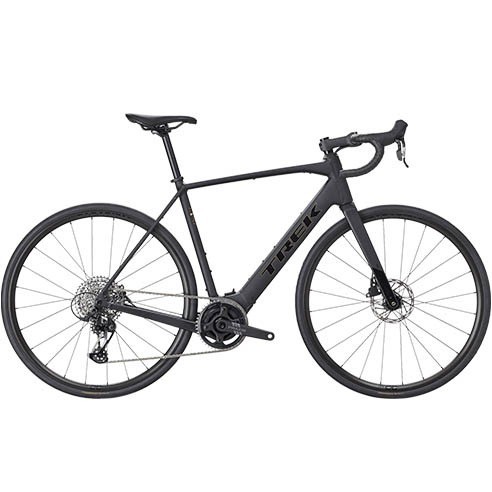

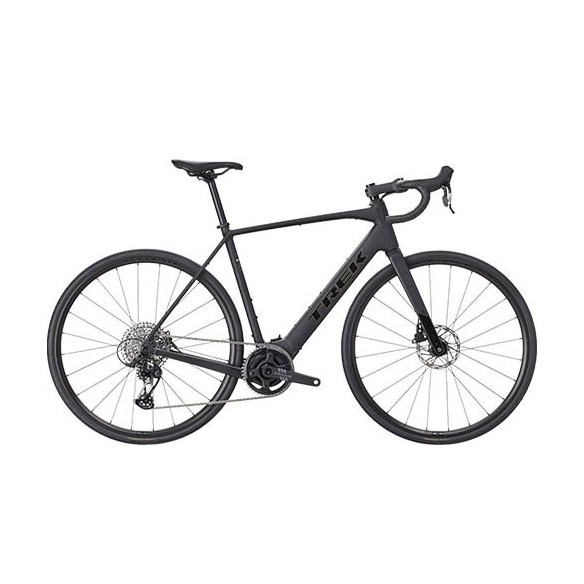

Trek Domane+ ALR 5 Bike (2026)

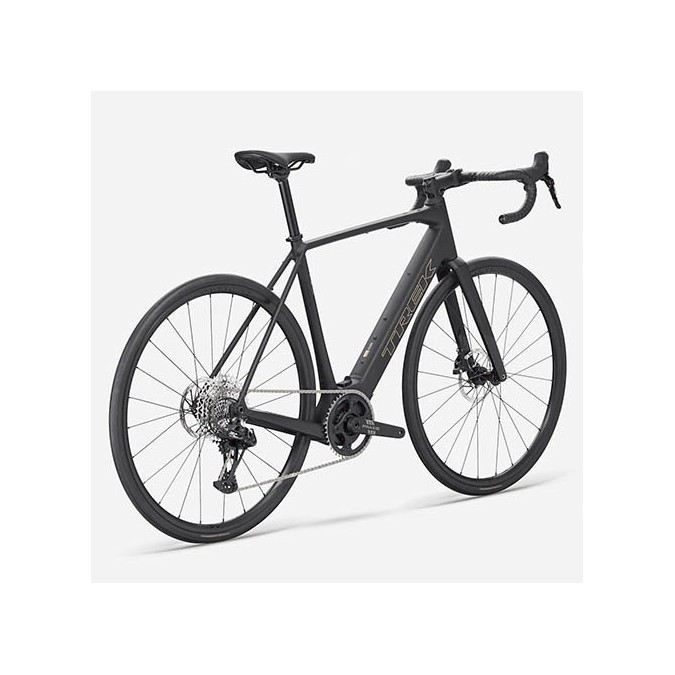

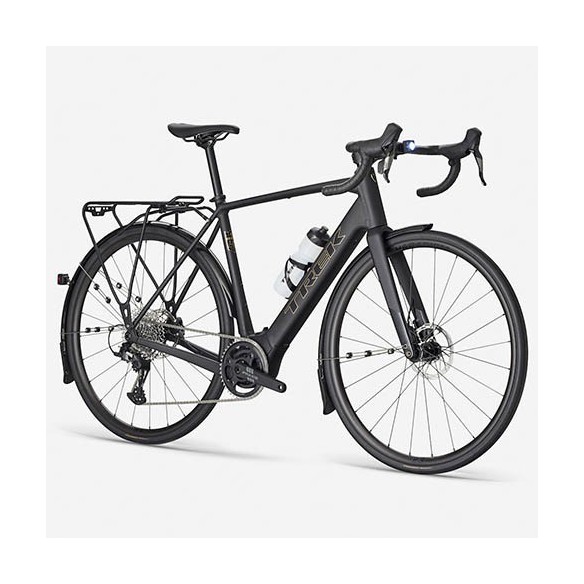

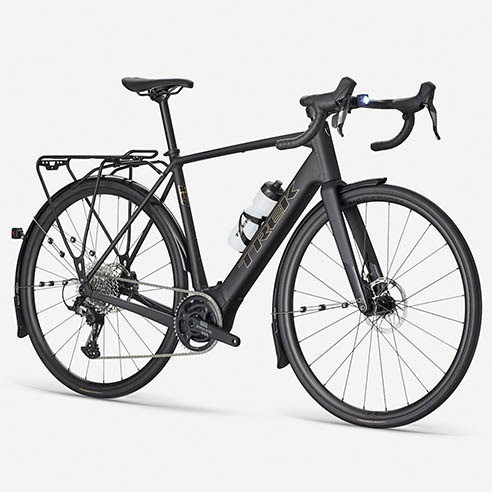

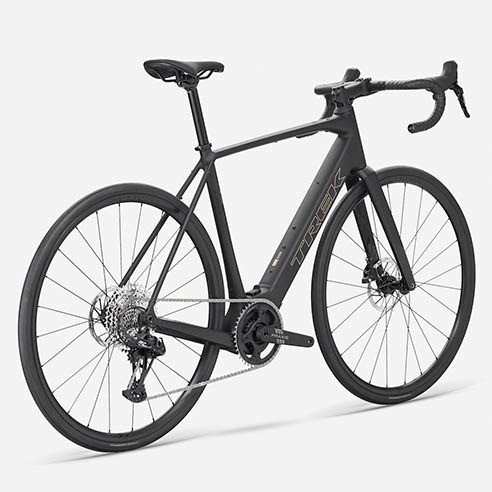

Trek Domane+ ALR 5 electric road bike, 2026 season, black. Trek reference: 5335357

The Domane+ ALR 5 aluminum electric road bike offers a smooth, quiet, and natural ride. Its TQ HPR60 motor provides the assistance needed for long rides and big climbs and is paired with a SRAM Apex 12-speed drivetrain for precise and consistent shifting.

SPECIFICATIONS

FRAMESET

• FRAME: 300 Series Alpha Aluminum, TQ motor, hidden rack and fender mounts, integrated frame bag mounts, flat-mount disc, integrated chain keeper, UDH, 142x12mm tapered thru-axle
• FORCE: Domane+ Carbon, tapered carbon steerer, fender mounts, flat-mount disc, 12x100 thru-axle mm

WEIGHT

• ML weight: 14.39 kg (with TLR sealant, without tubes)
• Weight limit: 125 kg (combined weight of bike, rider and cargo)

ELECTRICAL SYSTEM

• BATTERY: TQ 360 Wh
• CHARGER: TQ 4A

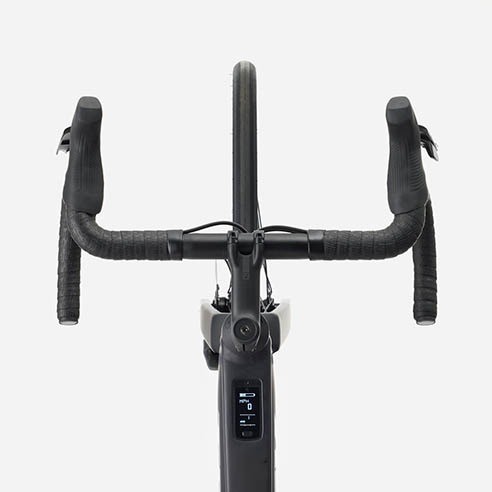

• COMPUTER: TQ LED screen with Bluetooth and ANT+ connectivity

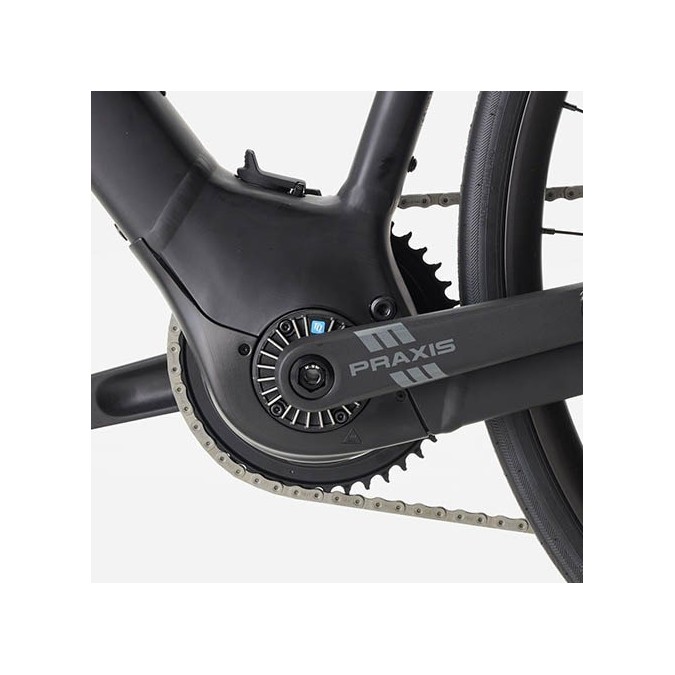

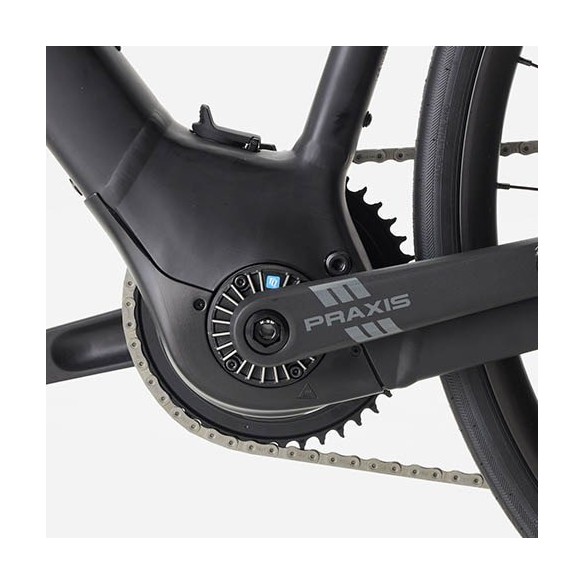

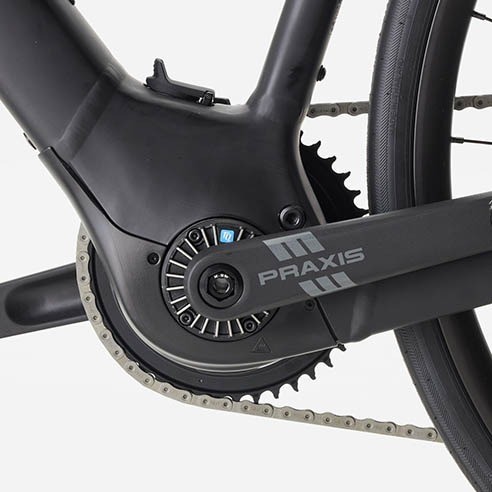

• MOTOR: TQ-HPR60, 60 Nm, maximum continuous rated power 300W, maximum power 350W

TRANSMISSION

• GEAR LEVER: SRAM Apex, 12-speed
• DERAILLEUR: SRAM Apex XPLR, max sprocket 44T
• CRANKSET: Praxis aluminum (165 mm on S and XS; 170 mm on M and ML; 172.5 mm on L and XL)
• CASSETTE: SRAM XPLR PG-1231, 11-44, 12-speed
• CHAIN: SRAM Apex, 12-speed
• Maximum chainring size: 46T (1x)

WHEELS

• FRONT HUB: Bontrager aluminum, sealed bearing, centerlock disc, 100x12mm thru-axle
• REAR HUB: Bontrager alloy, sealed bearing, centerlock disc, Shimano 11-speed freehub, 142x12 thru-axle mm
• RIM: Bontrager Paradigm 23, Tubeless Ready, 24-hole, 23 mm width, Presta valve
• SPOKES: 14g stainless steel, black
• CLINKER: Bontrager Kwaremont Pro GR, Tubeless Ready, folding rim, dual-compound, 120 tpi, 700x32 mm
• SEALANT: Bontrager TLR, 6 oz
• Max. Tire depth: 40 mm without fenders, 35 mm with fenders

COMPONENTS

• SADDLE: Verse Short Comp, steel rails, 145 mm wide
• SEATPOST: Bontrager alloy, 27.2 mm, 12 mm offset, 330 mm long

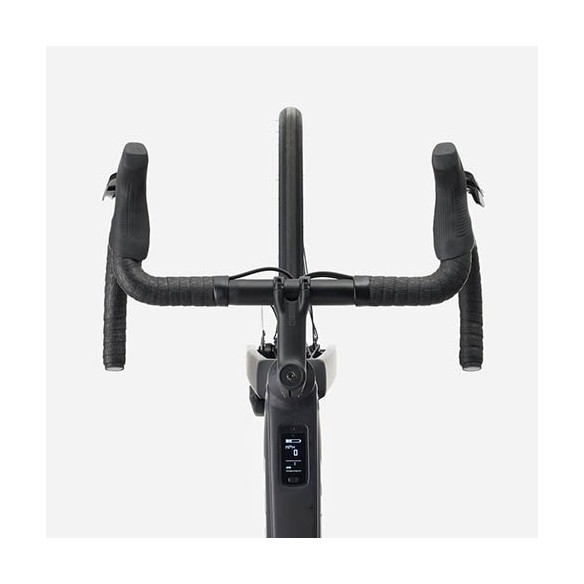

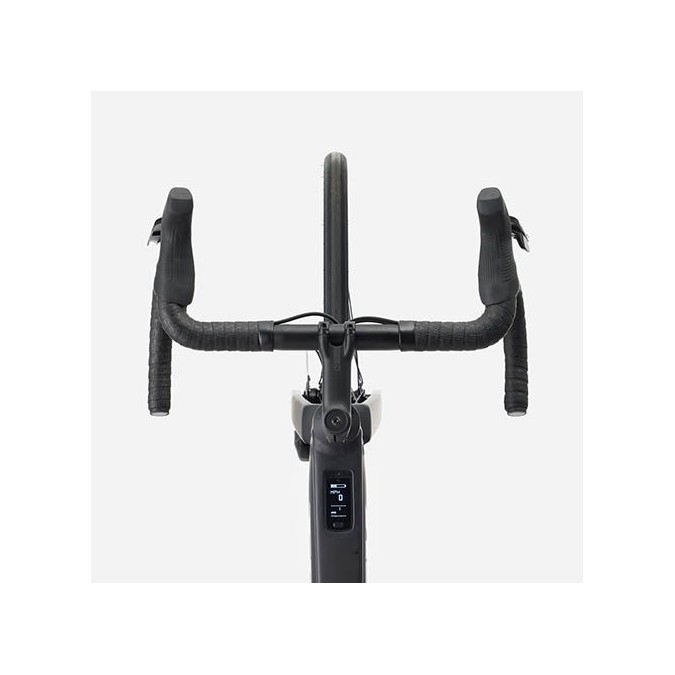

• HANDLEBAR: Bontrager Comp alloy, 31.8 mm, 121 mm drop (widths vary depending on size: XS 36/40 cm, S 38/42 cm, M/ML 40/44 cm, L/XL 42/46 cm)
• HANDLEBAR: Trek EcoTack
• STEM: Bontrager Elite, 31.8 mm, Blendr-compatible, 7° (lengths vary by size: XS 70 mm, S 80 mm, M 90 mm, L/ML 100 mm, XL 110 mm)
• BRAKES: SRAM Apex D1 hydraulic, flat mount
• RODS: SRAM Paceline, rounded, centerlock, 160 mm (maximum allowed: 160 mm front and rear)
