Trek Madone SL 5 Gen 8 Bike (2026)

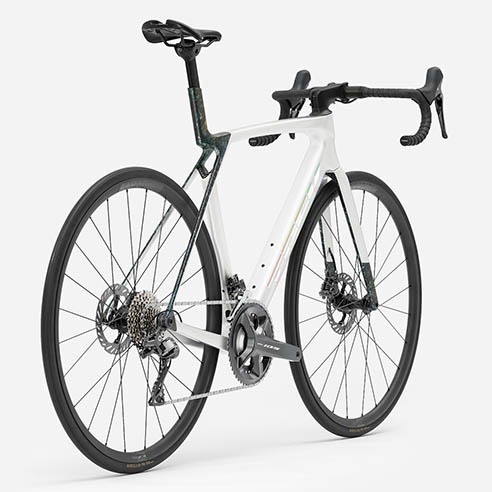

Trek Madone SL 5 Gen 8 road bike in Gloss Crystal White / Matte Deep Smoke. Trek product code: 5337910

The Madone SL 5 Gen 8 is a lightweight and aerodynamic road bike that offers high-performance technology at a more affordable price. It offers similar aerodynamic advantages to the Madone SLR Gen 8 models, but with a more economical OCLV 500 carbon fiber layup and a two-piece cockpit with hidden cable routing.

The Shimano 105 groupset, the aluminum handlebar, and the aluminum wheels keep the price down, while still offering precise and reliable mechanical shifting.

Frame Set

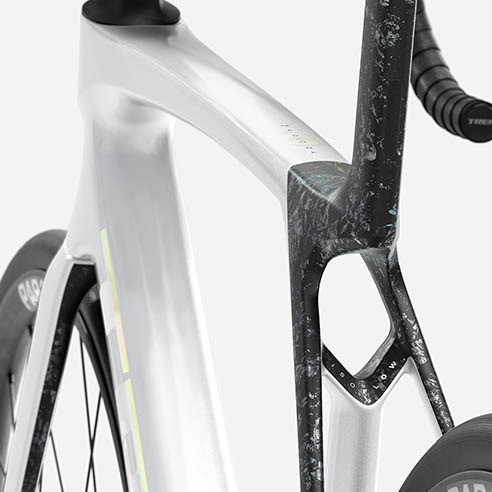

• Frame: OCLV Series 500 carbon, Full System Foil tube shapes, IsoFlow seat tube, RCS steering system, internal routing for electronic or mechanical drivetrain, removable aerodynamic chainstay protector, T47 bottom bracket, flat mount disc brake, UDH, 142x12mm thru-axle
• Fork: Madone Gen 8 full carbon, tapered carbon steerer tube, internal brake cable routing, flat mount disc brake, 12x100mm thru-axle

Wheels

• Wheels: Bontrager Paradigm 23, Tubeless Ready, 24 holes, 23mm rim width, Presta valve
• Hubs: Bontrager aluminum with sealed bearings, Centerlock disc mount, 100x12mm thru-axle (front), 142x12mm thru-axle (rear)
• Quick Releases: Bontrager Switch with removable lever
• Spokes: 14g stainless steel, black
• Tires: Bontrager R3 Hard-Case Lite, Tubeless Ready, aramid bead, 170 tpi, 700x28mm
• Max tire size:

Tire width: 32 mm (according to measurements, see manual)

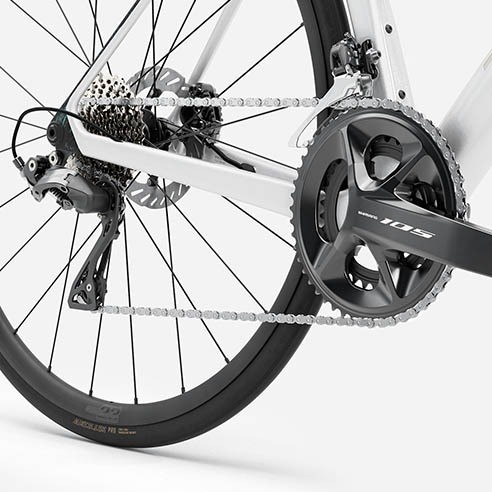

Drivetrain

• Front derailleur: Shimano 105 R7100, braze-on type, bottom mount
• Rear derailleur: Shimano 105 R7100, max. sprocket size 36T
• Cranks and chainrings: Shimano 105 R7100, 50/34
• Bottom bracket: Praxis, T47 threaded, internal bearings
• Cassette: Shimano 105 7101, 11-34, 12-speed
• Chain: Shimano SLX M7100, 12-speed
• Max. chainring size: 1x: 54T, 2x: 56/43

Components

• Saddle: Bontrager Aeolus Elite, austenite rails, 145 mm width
• Seatpost: Integrated Madone aerodynamic carbon seatpost, 0 mm setback, short length
• Handlebar: Bontrager Comp, aluminum, 31.8 mm, 80 mm reach, 121 mm drop, 40 cm bar width, 44 cm outer end width
• Handlebar tape (grips/ends): Trek EcoTack
• Stem: Trek RCS Pro, -7 degrees, 100 mm length
• Max. size... Brake discs: 180 mm (front), 160 mm (rear)

Weight

• Weight: ML - 8.64 kg / 19.05 lbs (with tubes)
• Weight limit: 125 kg (bike + rider + cargo)
